| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

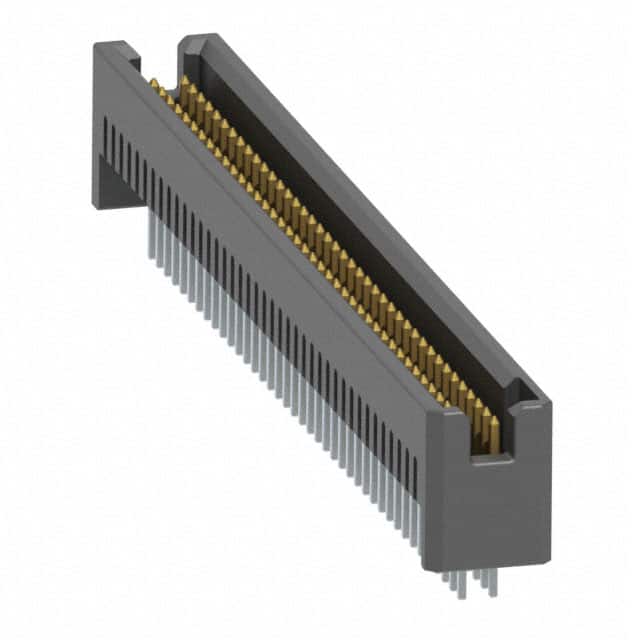

The Samtec TFM-140-11-S-D is a high-density, 80-position header from the Tiger Eye series. It features a 1.27mm pitch and a 2-row configuration with all positions loaded. The connector is shrouded with a 4-wall design and uses a push-pull fastening type for secure mating.
This header is constructed with a black Liquid Crystal Polymer (LCP) insulator and phosphor bronze contacts with a tin plating. It is designed for through-hole mounting with solder termination, making it suitable for board-to-board or cable applications. The contact length is 3.53mm and the insulation height is 7.37mm.
Electrically, the TFM-140-11-S-D is rated for 2.9A per contact and 275VAC, with an operating temperature range of -55°C to 125°C. The insulator material has a UL94 V-0 flammability rating. This connector is designed for reliable performance in a variety of electronic interconnect applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.84 | $9.84 |
| 30+ | $8.96 | $8.96 |
| 50+ | $8.48 | $8.48 |
| 100+ | $8.39 | $8.39 |
| 250+ | $7.49 | $7.49 |
| 500+ | $7.34 | $7.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TFM-140-11-S-D has 80 positions in a 2-row configuration.
The pitch is 1.27mm (0.050").
The current rating is 2.9A per contact.
The voltage rating is 275VAC.
The mounting type is through hole.
The operating temperature range is -55°C to 125°C.
The contact material is phosphor bronze with a tin finish.
