Mfr Part #:

TFM-140-02-S-D-A-P-TR

This is a 80-position, 2-row, 1.27mm pitch shrouded header from Samtec's TFM series. It features male pins, surface mount solder termination, and a push-pull fastening type.

✓ Total Stock: 5 pcs

$ Price Range: $7.18 - $13.07

TFM-140-02-S-D-A-P-TR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	5 pcs On Request	5 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TFM-140-02-S-D-A-P-TR Description

Short technical summary and product information.

The Samtec TFM-140-02-S-D-A-P-TR is a 80-position, 2-row, 1.27mm (0.050") pitch shrouded header from the TFM series. It features male pin contacts made of phosphor bronze with a tin plating (30.0µin / 0.76µm) over nickel. The insulator is black liquid crystal polymer (LCP) rated UL94 V-0. The connector is designed for board-to-board or cable applications, with a 4-wall shrouded design for mating alignment and protection. It is surface mount with solder termination and includes features such as board guide and pick-and-place for automated assembly. The current rating is 2.9A per contact, voltage rating 275VAC, and operating temperature range -55°C to 125°C. The fastening type is push-pull.

TFM-140-02-S-D-A-P-TR Quick Information

Product Type: Header

Series: TFM

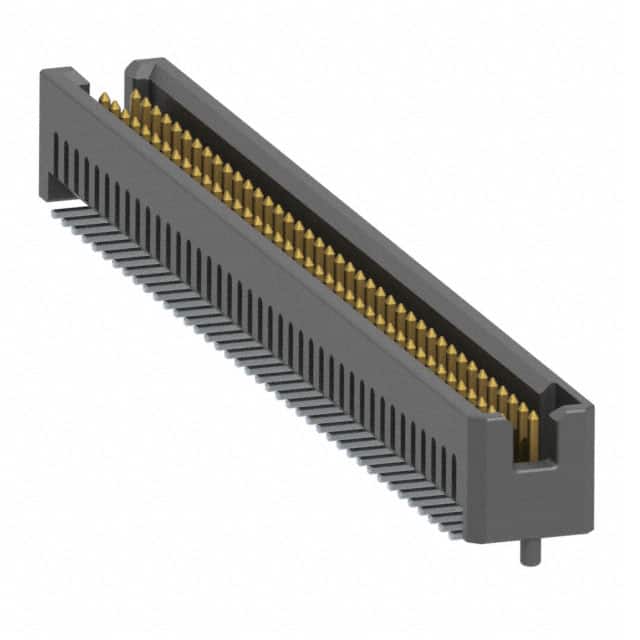

Canonical Name: Samtec Inc. TFM-140-02-S-D-A-P-TR 80 Position Shrouded Header, Male Pins, Surface Mount, 1.27mm Pitch

Subcategory: Shrouded Header

TFM-140-02-S-D-A-P-TR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TFM-140-02-S-D-A-P-TR Estimated Pricing

Qty	Low	High
1+	$13.07	$13.07
10+	$11.36	$11.36
25+	$11.07	$11.07
50+	$11.06	$11.06
100+	$9.47	$9.47
300+	$7.92	$7.92
600+	$7.53	$7.53
900+	$7.18	$7.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

TFM-140-02-S-D-A-P-TR Features

Shrouded 4-wall design for mating alignment.
Supports board-to-board and cable connections.
Surface mount with solder termination.
Phosphor bronze contacts with tin plating.
UL94 V-0 rated insulation material.

TFM-140-02-S-D-A-P-TR Applications

Ideal for high-density board-to-board interconnects.
Suitable for cable-to-board applications.
Used in industrial and commercial electronics.
Compatible with automated pick-and-place assembly.

TFM-140-02-S-D-A-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TFM-140-02-S-D-A-P-TR have?

80 positions.

What is the pitch of this connector?

1.27mm (0.050 inches).

What is the current rating per contact?

2.9A per contact.

What is the voltage rating?

275VAC.

What is the mounting type?

Surface Mount.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Tin with a thickness of 30.0µin (0.76µm).

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	30.0µin (0.76µm)
Contact Length	3.33mm (0.131")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.9A per Contact
Fastening Type	Push-Pull
Features	Board Guide, Pick and Place
Halogen Free	Yes
Insulation Color	Black
Insulation Height	5.60mm (0.220")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	1.27 mm
Lead Style	Smt
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	1.27mm (0.050")
Row Spacing	0.050" (1.27mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Tape & Reel	Yes
Termination	Solder
Termination Style	Solder
Voltage Rating	275VAC
