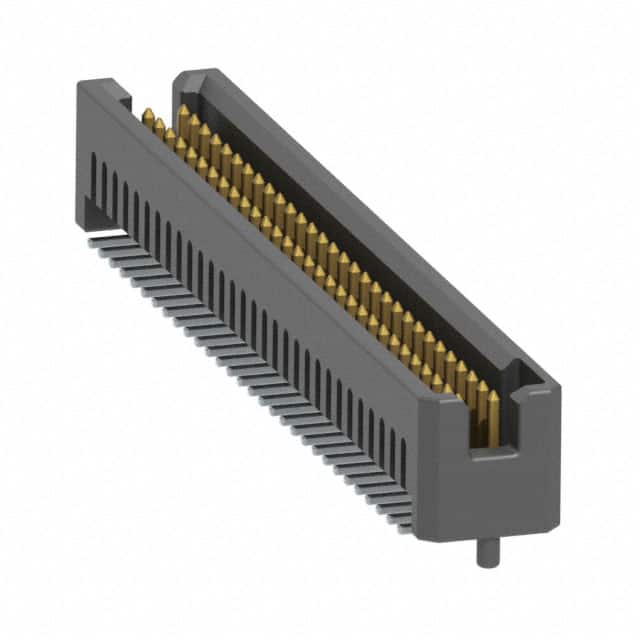

TFM-130-02-S-D-A-P-TR 60 position, 2 row, 1.27mm pitch shrouded header with male pins, surface mount, rated for 2.9A per contact and 275VAC.
Mfr Part #:

TFM-130-02-S-D-A-P-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
60 position, 2 row, 1.27mm pitch shrouded header with male pins, surface mount, rated for 2.9A per contact and 275VAC.
✓ Total Stock: 125 pcs
$ Price Range: $7.42 - $7.63

TFM-130-02-S-D-A-P-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
125 pcs
On Request
125 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TFM-130-02-S-D-A-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

TFM-130-02-S-D-A-P-TR Description

Short technical summary and product information.

The Samtec TFM-130-02-S-D-A-P-TR is a 60-position, 2-row, 1.27mm pitch shrouded header featuring male pins with tin-plated phosphor bronze contacts. It is designed for surface mount soldering and comes in a tape and reel package (300 pieces per reel). The connector features a 4-wall shrouded body with push-pull fastening, a black LCP insulator rated UL94 V-0, and includes a board guide and pick-and-place pad for automated assembly.



Electrical ratings include 2.9A per contact and 275VAC, with an operating temperature range of -55°C to 125°C. The contact finish thickness is 30µin (0.76µm) tin over nickel. This header is part of Samtec's Tiger Eye series, known for high-reliability applications and capable of up to 8 Gbps performance.



Typical applications include board-to-board and cable-to-board interconnects where a robust, shrouded connection is required. The surface mount termination and pick-and-place feature make it suitable for high-volume SMT assembly processes.

TFM-130-02-S-D-A-P-TR Quick Information

Product Type: Header, Male Pins
Series: TFM
Canonical Name: Samtec TFM-130-02-S-D-A-P-TR 60 Position 1.27mm Pitch Shrouded Header, Male Pins, Surface Mount
Subcategory: Shrouded Header

TFM-130-02-S-D-A-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TFM-130-02-S-D-A-P-TR Estimated Pricing

Qty Low High
300+ $7.63 $7.63
600+ $7.53 $7.53
900+ $7.42 $7.42

Estimated market price range - modelled values for guidance only, not live distributor offers.

TFM-130-02-S-D-A-P-TR Features

  • 60 positions in 2 rows at 1.27mm pitch.
  • Shrouded 4-wall design for blind mating.
  • Rated for 2.9A per contact and 275VAC.
  • Surface mount with solder termination.
  • Operating temperature range -55°C to 125°C.

TFM-130-02-S-D-A-P-TR Applications

  • Used in board-to-board interconnects.
  • Suitable for cable-to-board applications.
  • Ideal for high-reliability systems requiring Tiger Eye contacts.
  • Compatible with automated pick-and-place assembly.

TFM-130-02-S-D-A-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

60 positions.

What is the pitch?

1.27mm (0.050").

What is the current rating?

2.9A per contact.

What is the voltage rating?

275VAC.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-55°C to 125°C.

What is the insulation material and flammability rating?

Liquid Crystal Polymer (LCP) with UL94 V-0 rating.
