Mfr Part #:

TFM-125-22-S-D-LC

Samtec TFM-125-22-S-D-LC is a 50 position, 2 row, 1.27mm pitch surface mount shrouded header with tin plated phosphor bronze contacts.

✓ Total Stock: 120 pcs

$ Price Range: $6.67 - $7.65

TFM-125-22-S-D-LC Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	119 pcs On Request	119 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Chanetech ✓ Non-Authorised Inventory information	1 pcs On Request	1 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TFM-125-22-S-D-LC Description

Short technical summary and product information.

The Samtec TFM-125-22-S-D-LC is a 50 position, 2 row, 1.27mm pitch surface mount header from the Tiger Eye series. It features a shrouded 4-wall design with a push-pull fastening system and a locking clip option. The contacts are made of phosphor bronze with a tin finish (30.0µin) and are rated for 2.9A per contact (3.7A max). The insulation is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The operating temperature range is -55°C to 125°C. This header is suitable for board-to-board or cable applications and includes a board lock feature for secure mounting.

TFM-125-22-S-D-LC Quick Information

Product Type: Header, Male Pins

Series: TFM

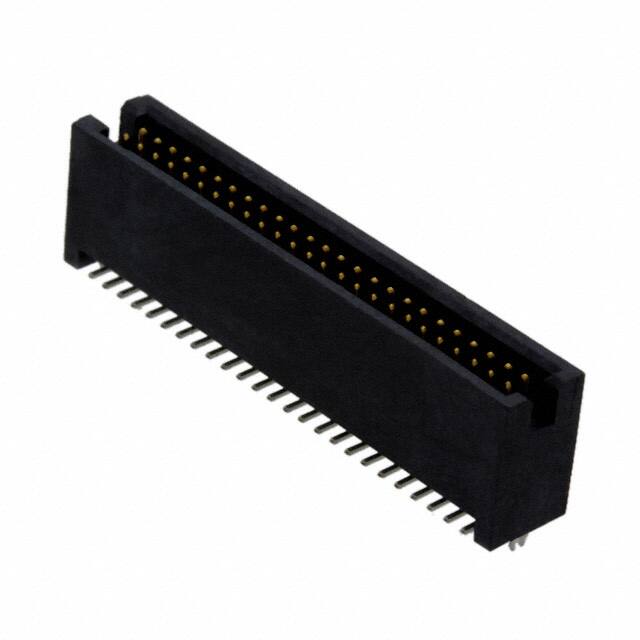

Canonical Name: Samtec TFM-125-22-S-D-LC 50 Position 1.27mm Pitch Surface Mount Shrouded Header

Subcategory: Shrouded Header

TFM-125-22-S-D-LC Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: No

TFM-125-22-S-D-LC Estimated Pricing

Qty	Low	High
1+	$7.65	$7.65
10+	$7.28	$7.28
25+	$7.04	$7.04
48+	$6.84	$6.84
112+	$6.67	$6.67

Estimated market price range - modelled values for guidance only, not live distributor offers.

TFM-125-22-S-D-LC Features

50 position 2 row 1.27mm pitch header.
Surface mount with solder termination.
Shrouded 4-wall push-pull design.
Tin plated phosphor bronze contacts.
Rated for 2.9A per contact.

TFM-125-22-S-D-LC Applications

Board-to-board interconnections.
Cable-to-board applications.
High-reliability electronic assemblies.
Industrial control systems.

TFM-125-22-S-D-LC FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TFM-125-22-S-D-LC have?

50 positions in 2 rows.

What is the pitch of this connector?

1.27mm (0.050")

What is the current rating per contact?

2.9A per contact (3.7A max).

What is the voltage rating?

275VAC (354 VDC max per manufacturer).

What is the mounting type?

Surface mount with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What is the contact material and finish?

Phosphor bronze contacts with 30.0µin (0.76µm) tin finish.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
AEC Qualified	No
Automotive Grade	No
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	30.0µin (0.76µm)
Contact Length	3.53mm (0.139")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.9A per Contact
Current Rating (Max)	3.7 A max
Fastening Type	Push-Pull
Features	Board Lock
Halogen Free	Yes
Industrial Grade	Yes
Insulation Color	Black
Insulation Height	9.14mm (0.360")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	1.27 mm
Lead Style	Smt
Material Flammability Rating	UL94 V-0
Medical Grade	No
Military Grade	No
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	1.27mm (0.050")
Row Spacing	0.050" (1.27mm)
SVHC Present	Not Present
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
Voltage Rating	275VAC
