| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | 634 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

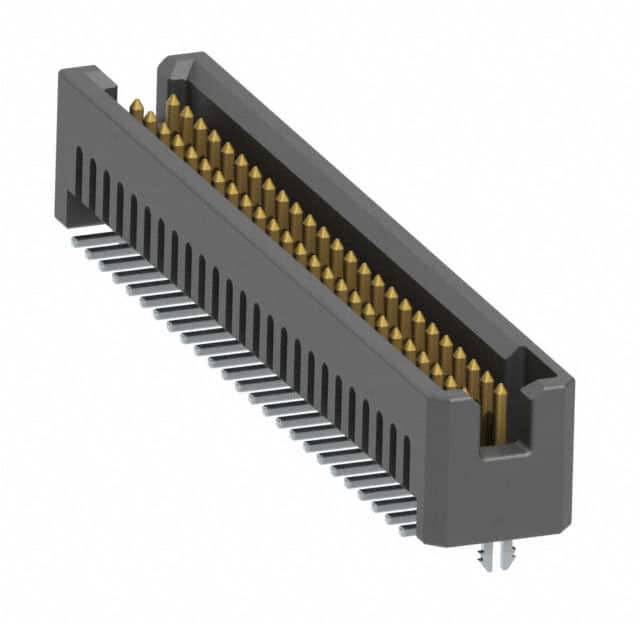

The Samtec TFM-125-02-S-D-LC is a high-reliability Tiger Eye box header connector from the TFM series. It features a 50 position, 2 row configuration with a 1.27mm (0.050") pitch, making it suitable for board-to-board or cable applications. The connector is shrouded with a 4-wall design for blind mating and includes a board lock for secure attachment.
This surface mount header uses phosphor bronze contacts with a tin finish (30.0µin/0.76µm) and is housed in a black liquid crystal polymer (LCP) insulator rated UL94 V-0. It is rated for a current of 2.9A per contact and a voltage of 275VAC, with an operating temperature range of -55°C to 125°C.
Designed for high-density interconnects, the TFM-125-02-S-D-LC is ideal for applications requiring a reliable, polarized connection. Its push-pull fastening type and surface mount termination simplify assembly in automated manufacturing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.61 | $7.61 |
| 10+ | $7.14 | $7.14 |
| 25+ | $6.64 | $6.64 |
| 48+ | $6.17 | $6.17 |
| 512+ | $5.81 | $5.81 |
| 1,008+ | $5.64 | $5.64 |
| 2,000+ | $5.39 | $5.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 50 positions.
The pitch is 1.27mm (0.050").
The current rating is 2.9A per contact.
The voltage rating is 275VAC.
It is surface mount (SMD).
The operating temperature range is -55°C to 125°C.
The contact material is phosphor bronze with a tin finish of 30.0µin (0.76µm).
