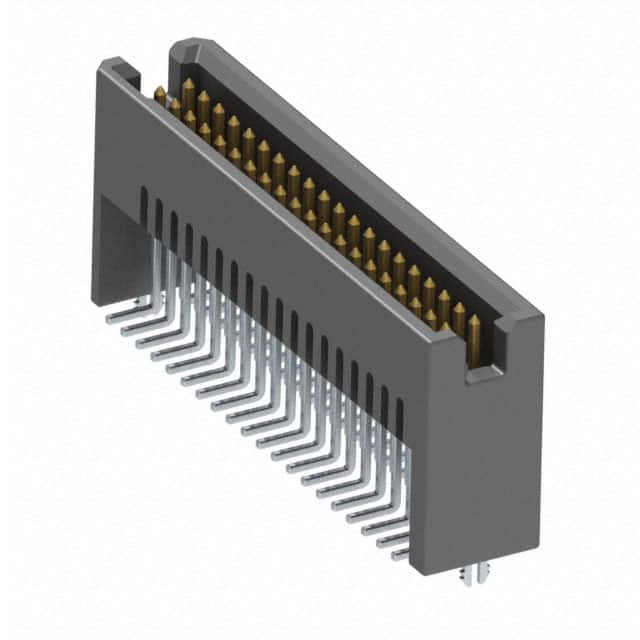

The Samtec TFM-120-32-S-D-LC is a 40-position, dual-row, 1.27mm pitch surface mount header from the TFM series. It features a shrouded 4-wall design that protects the male pin contacts and provides polarization. The square pins are made of phosphor bronze with a tin finish over 50µ" nickel, offering a contact length of 3.53mm. The insulator is black liquid crystal polymer (LCP) rated UL94 V-0, with an insulation height of 11.05mm.
Electrically, this connector is rated for 2.9A per contact with a voltage rating of 275VAC. It operates over a temperature range of -55°C to 125°C. The push-pull fastening type and integrated board lock ensure secure mating and retention on the PCB.
This header is suitable for board-to-board or cable-to-board applications, particularly where space is constrained due to the fine pitch. The surface mount termination allows for automated assembly. The part is designated as lead-free solderable and is listed as RoHS3 compliant (unverified).
