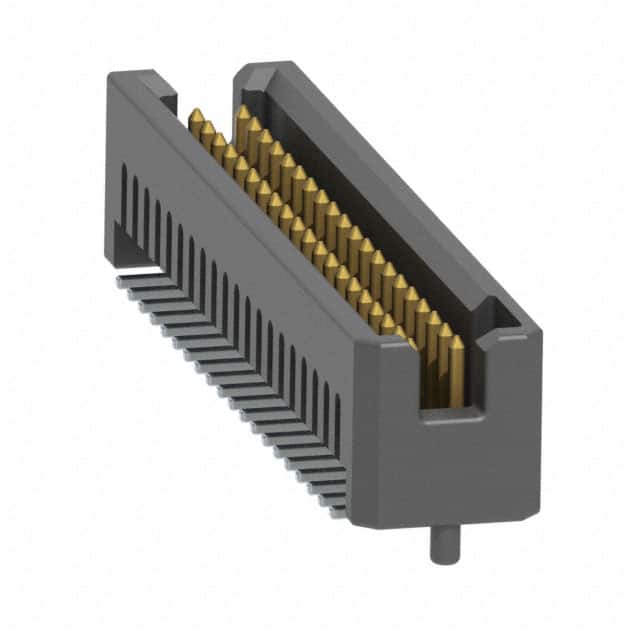

The Samtec TFM-120-02-S-D-A is a 40-position, 2-row surface mount header with a 1.27mm pitch. It features a shrouded 4-wall design with push-pull fastening and a board guide for alignment. The contacts are made of phosphor bronze with a tin finish, and the insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
Electrical ratings include 2.9A per contact and 275VAC, with an operating temperature range of -55°C to 125°C. The header is suitable for board-to-board or cable connections in high-density applications. Termination is via solder, and the component is surface mount compatible.
Mechanical specifications include a 5.60mm insulation height and 3.33mm contact length. The part is RoHS3 compliant (unverified) and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $5.95 | $5.95 |
| 10+ | $5.59 | $5.59 |
| 20+ | $4.87 | $4.87 |
| 100+ | $4.41 | $4.41 |
| 500+ | $4.12 | $4.12 |
| 1,000+ | $3.89 | $3.89 |
| 2,000+ | $3.70 | $3.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 40 positions arranged in 2 rows.
The pitch is 1.27mm (0.050 inches).
The current rating is 2.9A per contact.
The voltage rating is 275VAC.
The mounting type is surface mount with solder termination.
The operating temperature range is -55°C to 125°C.
Yes, it has a shrouded 4-wall design with push-pull fastening.
