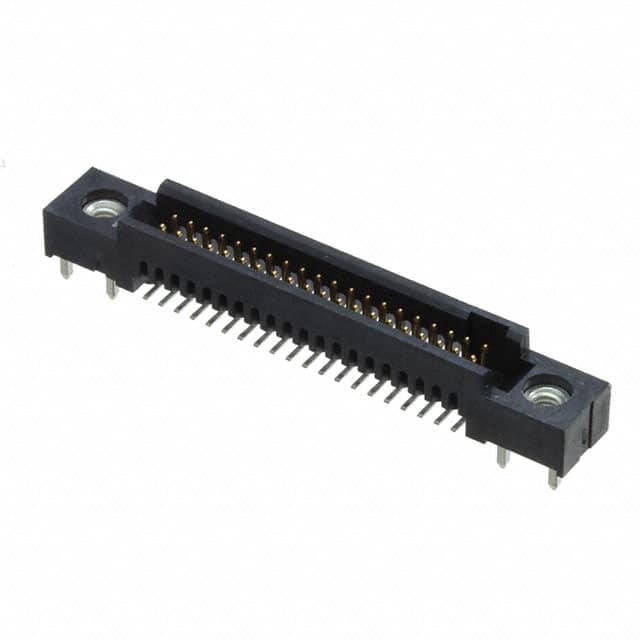

TFM-120-02-L-D-DS The Samtec TFM-120-02-L-D-DS is a 40-position, 2-row, 1.27mm pitch surface mount header connector. It features a shrouded 4-wall design, tin-plated phosphor bronze contacts, and a push-pull fastening type.
Mfr Part #:

TFM-120-02-L-D-DS

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec TFM-120-02-L-D-DS is a 40-position, 2-row, 1.27mm pitch surface mount header connector. It features a shrouded 4-wall design, tin-plated phosphor bronze contacts, and a push-pull fastening type.
✓ Total Stock: 23 pcs
$ Price Range: $6.84 - $10.55

TFM-120-02-L-D-DS Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request 13+ On Request On Request
Partservice ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TFM-120-02-L-D-DS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

TFM-120-02-L-D-DS Description

Short technical summary and product information.

The Samtec TFM-120-02-L-D-DS is a rectangular connector header from the Tiger Eye series. It is a 40-position, 2-row, surface mount male pin header with a 1.27mm pitch. The connector is fully shrouded with a 4-wall design and features a push-pull fastening mechanism. It is designed for board-to-board or cable applications. The contacts are made of phosphor bronze with a tin finish (15µin thickness). The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The connector has a current rating of 2.9A per contact and a voltage rating of 275VAC. It operates over a temperature range of -55°C to +125°C. The mounting type is surface mount with solder termination. The contact length is 3.33mm and insulation height is 5.60mm. This connector is suitable for high-density interconnects requiring reliable performance in harsh environments.

TFM-120-02-L-D-DS Quick Information

Product Type: Header Connector
Series: TFM
Canonical Name: Samtec TFM-120-02-L-D-DS Header, Male Pins, 40 Position, 1.27mm Pitch, Surface Mount
Subcategory: Male Pins

TFM-120-02-L-D-DS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TFM-120-02-L-D-DS Estimated Pricing

Qty Low High
1+ $10.55 $10.55
104+ $8.08 $8.08
507+ $7.75 $7.75
1,001+ $6.84 $6.84

Estimated market price range - modelled values for guidance only, not live distributor offers.

TFM-120-02-L-D-DS Features

  • 40-position, 2-row, 1.27mm pitch surface mount header.
  • Shrouded 4-wall design for secure mating.
  • Tin-plated phosphor bronze contacts.
  • Rated for 2.9A per contact and 275VAC.
  • Operating temperature range -55°C to +125°C.

TFM-120-02-L-D-DS Applications

  • Board-to-board interconnects in compact electronic devices.
  • Cable-to-board connections requiring high-density pin count.
  • Industrial and automotive applications needing rugged connectors.

TFM-120-02-L-D-DS FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TFM-120-02-L-D-DS have?

40 positions.

What is the pitch of the TFM-120-02-L-D-DS?

1.27mm (0.050").

What is the current rating of the TFM-120-02-L-D-DS?

2.9A per contact.

What is the voltage rating of the TFM-120-02-L-D-DS?

275VAC.

What is the mounting type of the TFM-120-02-L-D-DS?

Surface mount.

What is the operating temperature range?

-55°C to +125°C.

What is the contact finish?

Tin, 15µin (0.38µm) thickness.
