| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
43 pcs
|
43 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

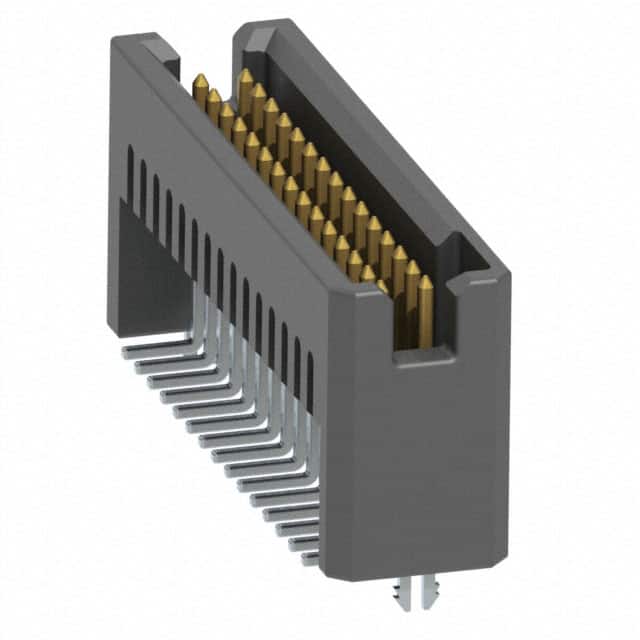

The Samtec TFM-115-22-S-D-LC is a 30-position (2 rows) male pin header connector with a 1.27mm (0.050") pitch. It belongs to the Tiger Eye™ series, designed for rugged board-to-board or cable applications. The connector features a shrouded 4-wall design with push-pull fastening and includes a board lock for secure mounting. It is surface mount (SMD) with solder termination.
Electrical specifications include a current rating of 2.9A per contact and a voltage rating of 275VAC. The operating temperature range is -55°C to +125°C. The insulation material is black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. Contacts are made of phosphor bronze with a tin finish (30µin / 0.76µm thickness). The contact length is 3.53mm and insulation height is 9.14mm.
The connector is RoHS3 compliant and REACH unaffected (though unverified). Suitable for applications requiring high-density interconnection with reliable mating.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.13 | $5.13 |
| 10+ | $4.81 | $4.81 |
| 25+ | $4.76 | $4.76 |
| 100+ | $4.48 | $4.48 |
| 500+ | $4.20 | $4.20 |
| 1,000+ | $3.96 | $3.96 |
| 2,000+ | $3.76 | $3.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions, all loaded, in 2 rows.
1.27mm (0.050")
2.9A per contact.
275VAC.
Surface mount (SMD) with solder termination.
-55°C to +125°C.
Black Liquid Crystal Polymer (LCP) with UL94 V-0 rating.
