| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
110 pcs
|
110 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

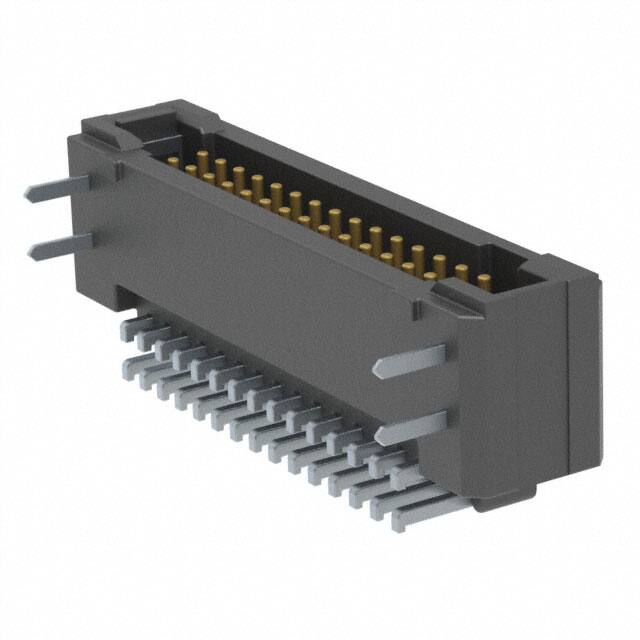

The Samtec TFM-115-02-S-DH is a 30 position, 2 row, right angle surface mount header from the TFM series of Tiger Eye connectors. It features a 1.27mm (0.050") pitch and a shrouded 4-wall design for blind mating and polarization. The contacts are made of phosphor bronze with a tin finish (30.0µin/0.76µm) and are rated for 2.9A per contact with a voltage rating of 275VAC.
This connector is designed for board-to-board and cable applications, offering up to 8 Gbps data rate performance. The insulation is black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. It operates over a temperature range of -55°C to 125°C.
The TFM-115-02-S-DH is terminated via surface mount solder and is packaged in a tube of 22 parts. It is lead-free solderable and meets the requirements of high-reliability applications, including severe environment testing per MIL-DTL-55302.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.38 | $8.38 |
| 110+ | $8.36 | $8.36 |
| 264+ | $6.63 | $6.63 |
| 506+ | $6.20 | $6.20 |
| 1,012+ | $5.58 | $5.58 |
| 2,002+ | $5.29 | $5.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions.
1.27mm (0.050").
2.9A per contact.
275VAC.
Surface Mount, Right Angle.
-55°C to 125°C.
8 Gbps.
