| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
278 pcs
|
278 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

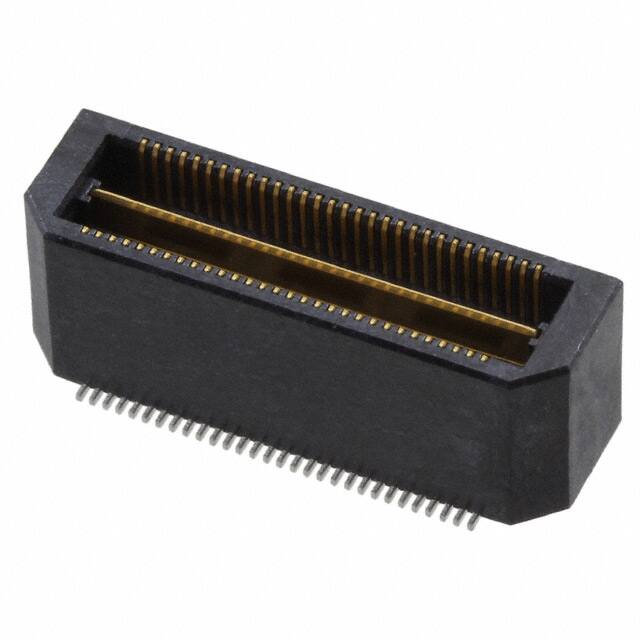

The Samtec TFM-115-02-S-D-LC is a 30-position, 2-row, 1.27mm pitch shrouded header from the Tiger Eye series. It features male pins with phosphor bronze contacts and a tin contact finish (30.0µin). The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. This surface mount component uses solder termination and includes a board lock feature for secure attachment. The header is rated for 2.9A per contact and 275VAC, with an operating temperature range of -55°C to 125°C. It is designed for board-to-board or cable applications and comes packaged in a tube of 26 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.86 | $4.86 |
| 10+ | $4.43 | $4.43 |
| 26+ | $4.30 | $4.30 |
| 104+ | $4.05 | $4.05 |
| 520+ | $3.80 | $3.80 |
| 1,014+ | $3.54 | $3.54 |
| 2,002+ | $3.31 | $3.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions in a 2-row configuration.
1.27mm (0.050").
2.9A per contact.
275VAC.
Surface mount.
-55°C to 125°C.
Tin, 30.0µin (0.76µm).
