| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
88 pcs
|
88 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

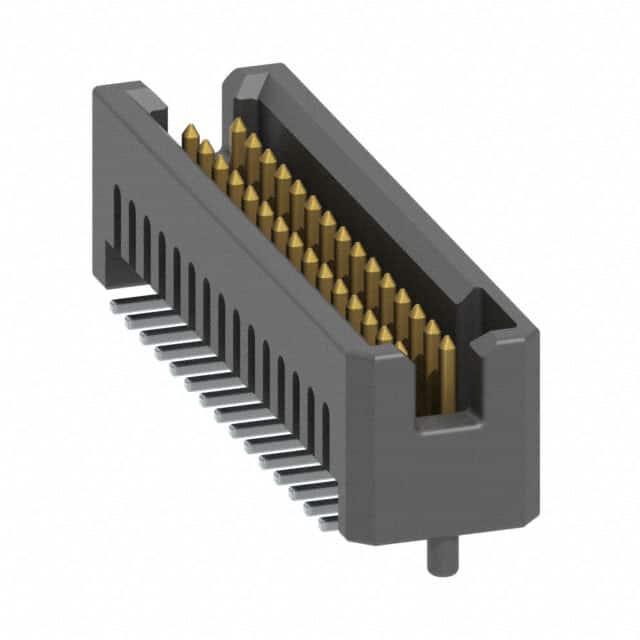

The Samtec TFM-115-02-S-D-A-P-TR is a 30-position, 2-row, 1.27mm pitch shrouded header from the Tiger Eye series. It features a 4-wall shrouded design for blind mating and robust mechanical protection. The connector uses phosphor bronze contacts with a tin finish (30.0µin) and is rated for 2.9A per contact with a voltage rating of 275VAC.
The header is surface mount with solder termination and includes board guide and pick-and-place features for automated assembly. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. Operating temperature range is -55°C to 125°C.
Packaged in tape and reel with a standard quantity of 300 pieces, this connector is suitable for board-to-board or cable applications requiring a compact, high-reliability interconnect.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.79 | $5.79 |
| 10+ | $5.17 | $5.17 |
| 25+ | $4.99 | $4.99 |
| 50+ | $4.83 | $4.83 |
| 100+ | $4.26 | $4.26 |
| 300+ | $3.62 | $3.62 |
| 600+ | $3.49 | $3.49 |
| 900+ | $3.41 | $3.41 |
| 1,800+ | $3.15 | $3.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm (0.050").
It has 30 positions arranged in 2 rows.
The current rating is 2.9A per contact.
The voltage rating is 275VAC.
It is a surface mount connector with solder termination.
The operating temperature range is -55°C to 125°C.
The contact finish is tin with a thickness of 30.0µin (0.76µm).
