TFM-115-01-S-D-WT Samtec TFM-115-01-S-D-WT is a .050" (1.27mm) pitch Tiger Eye box header connector with 30 positions in 2 rows, through-hole termination, and shrouded 4-wall design.
Mfr Part #:

TFM-115-01-S-D-WT

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TFM-115-01-S-D-WT is a .050" (1.27mm) pitch Tiger Eye box header connector with 30 positions in 2 rows, through-hole termination, and shrouded 4-wall design.
✓ Total Stock: 15 pcs
$ Price Range: $3.33 - $4.24

TFM-115-01-S-D-WT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request 10+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TFM-115-01-S-D-WT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

TFM-115-01-S-D-WT Description

Short technical summary and product information.

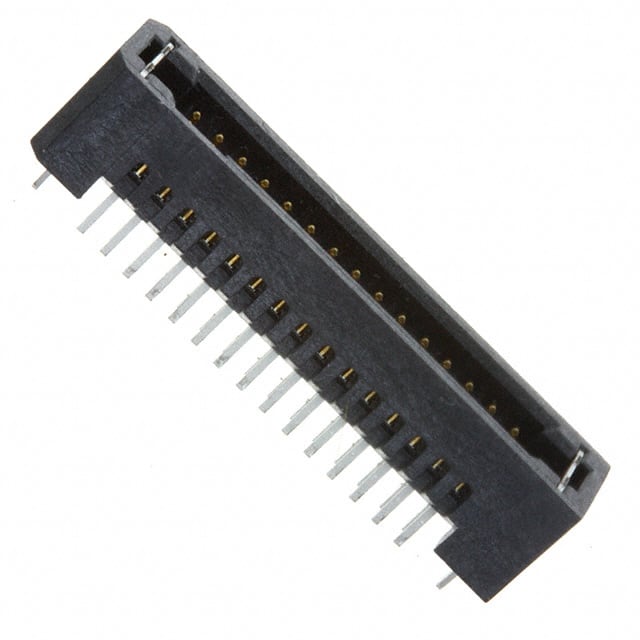

The Samtec TFM-115-01-S-D-WT is a .050" (1.27mm) pitch Tiger Eye box header connector from the TFM series. It features 30 positions arranged in 2 rows with a through-hole mounting style and solder termination. The connector has a shrouded 4-wall design for blind mating and includes a solder retention feature for secure attachment to the PCB.



Electrical ratings include a current rating of 2.9A per contact and a voltage rating of 275VAC. The operating temperature range is -55°C to 125°C. Contacts are made of phosphor bronze with a tin finish (30.0µin thickness). The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.



This header is designed for board-to-board or cable applications and mates with high-reliability Tiger Eye contact sockets and cable assemblies. It is packaged in tubes with a standard quantity of 21 pieces per tube.

TFM-115-01-S-D-WT Quick Information

Product Type: Header Connector
Series: TFM
Canonical Name: Samtec TFM-115-01-S-D-WT .050" Tiger Eye Box Header, 30 Position, 2 Row, Through Hole, Solder Retention
Subcategory: Shrouded Header

TFM-115-01-S-D-WT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TFM-115-01-S-D-WT Estimated Pricing

Qty Low High
1+ $4.24 $4.24
42+ $4.00 $4.00
504+ $3.78 $3.78
1,008+ $3.55 $3.55
2,520+ $3.33 $3.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

TFM-115-01-S-D-WT Features

  • 30 positions in 2 rows at 1.27mm pitch.
  • Through-hole mounting with solder termination.
  • Shrouded 4-wall design for blind mating.
  • Rated for 2.9A per contact and 275VAC.
  • Operating temperature range -55°C to 125°C.

TFM-115-01-S-D-WT Applications

  • Board-to-board and cable interconnect systems.
  • High-reliability industrial and commercial electronics.
  • Applications requiring blind-mate shrouded headers.
  • Systems needing solder retention for rugged environments.

TFM-115-01-S-D-WT FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TFM-115-01-S-D-WT have?

30 positions, all loaded, in 2 rows.

What is the pitch of this connector?

1.27mm (0.050") pitch with 1.27mm row spacing.

What is the current rating of the TFM-115-01-S-D-WT?

2.9A per contact.

What is the voltage rating of this header?

275VAC.

What is the mounting type for this part?

Through hole with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish on the TFM-115-01-S-D-WT?

Tin with a thickness of 30.0µin (0.76µm).
