Mfr Part #:

TFM-110-32-S-D-LC

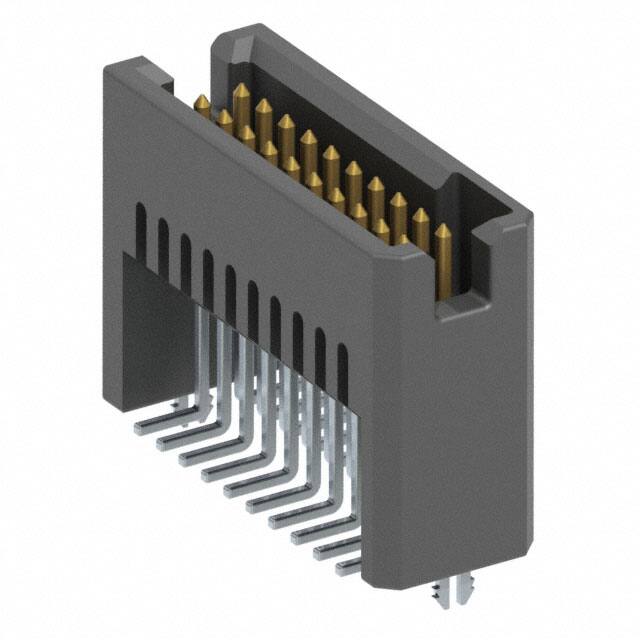

Samtec TFM-110-32-S-D-LC is a 20-position, 2-row, 1.27mm pitch shrouded header with male pin contacts, surface mount termination, and tin plating.

✓ Total Stock: 110 pcs

$ Price Range: $3.29 - $4.48

TFM-110-32-S-D-LC Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	110 pcs On Request	110 pcs	On Request	1	On Request	On Request	08+	On Request	On Request

TFM-110-32-S-D-LC Description

Short technical summary and product information.

The Samtec TFM-110-32-S-D-LC is a 20-position, 2-row shrouded header connector from the TFM Tiger Eye series. It features a 1.27mm (0.050") pitch and row spacing, with all positions loaded. The connector uses phosphor bronze male pin contacts with a square shape, tin plating (30.0µin over nickel), and a contact length of 3.53mm. The insulation is black liquid crystal polymer (LCP) with a height of 11.05mm, rated UL94 V-0 for flammability.

This surface mount header is designed for board-to-board or cable applications. It includes a board lock feature for secure attachment and uses a push-pull fastening type. The operating temperature range is -55°C to +125°C. Electrical ratings include 2.9A per contact current and 275VAC voltage. The connector is RoHS3 compliant and has an MSL of 1 (unlimited).

TFM-110-32-S-D-LC Quick Information

Product Type: Header Connector

Series: TFM

Canonical Name: Samtec TFM Series 20 Position 1.27mm Pitch Shrouded Header, Surface Mount, Male Pin

Subcategory: Shrouded Header

TFM-110-32-S-D-LC Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

TFM-110-32-S-D-LC Estimated Pricing

Qty	Low	High
1+	$4.48	$4.48
25+	$4.14	$4.14
36+	$3.49	$3.49
108+	$3.46	$3.46
1,008+	$3.41	$3.41
2,520+	$3.29	$3.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

TFM-110-32-S-D-LC Features

20 positions in 2 rows at 1.27mm pitch.
Shrouded 4-wall design for blind mating.
Rated 2.9A per contact and 275VAC.
Surface mount with board lock feature.
Operating temperature range -55°C to +125°C.

TFM-110-32-S-D-LC Applications

Board-to-board stacking applications.
Cable-to-board interconnect systems.
High-reliability industrial electronics.
Signal and power distribution in compact designs.

TFM-110-32-S-D-LC FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the TFM-110-32-S-D-LC have?

20 positions in a 2-row configuration.

What is the pitch of this connector?

1.27mm (0.050") pitch with 1.27mm row spacing.

What is the current rating per contact?

2.9A per contact.

What is the voltage rating?

275VAC.

What mounting type does this connector use?

Surface mount with solder termination.

What is the operating temperature range?

-55°C to +125°C.

Is this connector RoHS compliant?

RoHS3 compliant (unverified).

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	30.0µin (0.76µm)
Contact Length	3.53mm (0.139")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.9A per Contact
Fastening Type	Push-Pull
Features	Board Lock
Halogen Free	Yes
Insulation Color	Black
Insulation Height	11.05mm (0.435")
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Spacing	1.27 mm
Lead Style	Smd
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	1.27mm (0.050")
Row Spacing	0.050" (1.27mm)
SVHC Present	Not Present
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
Termination Style	Solder
Voltage Rating	275VAC
