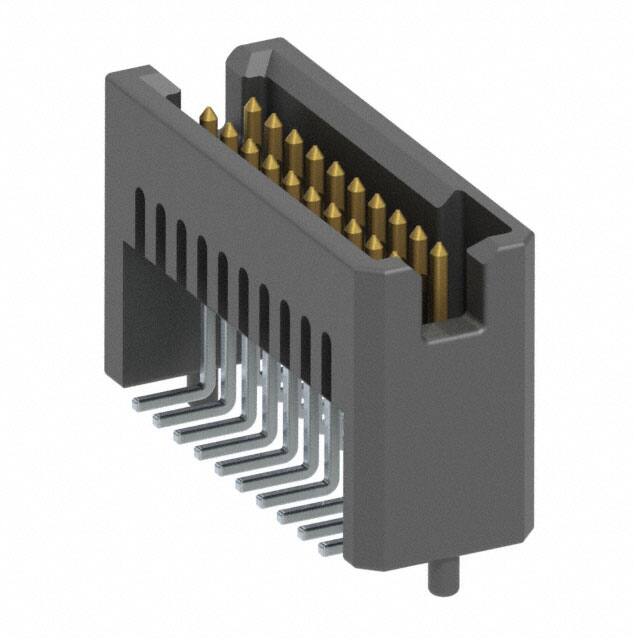

TFM-110-22-S-D-A The TFM-110-22-S-D-A is a 20-position, 2-row, 1.27mm pitch shrouded header connector from Samtec's Tiger Eye series. It features surface mount termination, tin-plated phosphor bronze contacts, and a black LCP insulator.
Mfr Part #:

TFM-110-22-S-D-A

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The TFM-110-22-S-D-A is a 20-position, 2-row, 1.27mm pitch shrouded header connector from Samtec's Tiger Eye series. It features surface mount termination, tin-plated phosphor bronze contacts, and a black LCP insulator.
✓ Total Stock: 19 pcs
$ Price Range: $2.93 - $3.78

TFM-110-22-S-D-A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
19 pcs
On Request
19 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TFM-110-22-S-D-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

TFM-110-22-S-D-A Description

Short technical summary and product information.

The TFM-110-22-S-D-A is a 20-position, 2-row header connector from Samtec's Tiger Eye series, featuring a 1.27mm (0.050") pitch. It is a shrouded, 4-wall design that provides protection and facilitates blind mating. The connector uses surface mount termination for efficient SMD assembly.



The contacts are made of phosphor bronze with a tin finish (0.76µm), ensuring reliable electrical performance. The insulator is black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. The connector is rated for 2.9A per contact and 275VAC, with an operating temperature range of -55°C to 125°C.



Designed for board-to-board or cable applications, this header is part of Samtec's high-reliability Tiger Eye contact system. It includes a board guide feature for accurate alignment during assembly. The part is available in tube packaging with a standard quantity of 36 pieces.

TFM-110-22-S-D-A Quick Information

Product Type: Header Connector
Series: TFM
Canonical Name: Samtec TFM-110-22-S-D-A, 20 Position 1.27mm Pitch Header, Male Pins, Surface Mount
Subcategory: Shrouded Header

TFM-110-22-S-D-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TFM-110-22-S-D-A Estimated Pricing

Qty Low High
1+ $3.78 $3.78
25+ $3.63 $3.63
504+ $3.39 $3.39
1,008+ $3.17 $3.17
2,520+ $2.93 $2.93

Estimated market price range - modelled values for guidance only, not live distributor offers.

TFM-110-22-S-D-A Features

  • 20 positions in 2 rows.
  • 1.27mm pitch for compact designs.
  • Shrouded 4-wall housing for blind mating.
  • Surface mount termination for SMD assembly.
  • Tin-plated phosphor bronze contacts.

TFM-110-22-S-D-A Applications

  • Board to board or cable connections.
  • High-reliability Tiger Eye contact system.
  • Qualified for severe environment testing.
  • Supports up to 8 Gbps data rates.

TFM-110-22-S-D-A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

20 positions.

What is the pitch?

1.27mm (0.050").

What is the current rating?

2.9A per contact.

What is the voltage rating?

275VAC.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Tin, 0.76µm (30µin).
