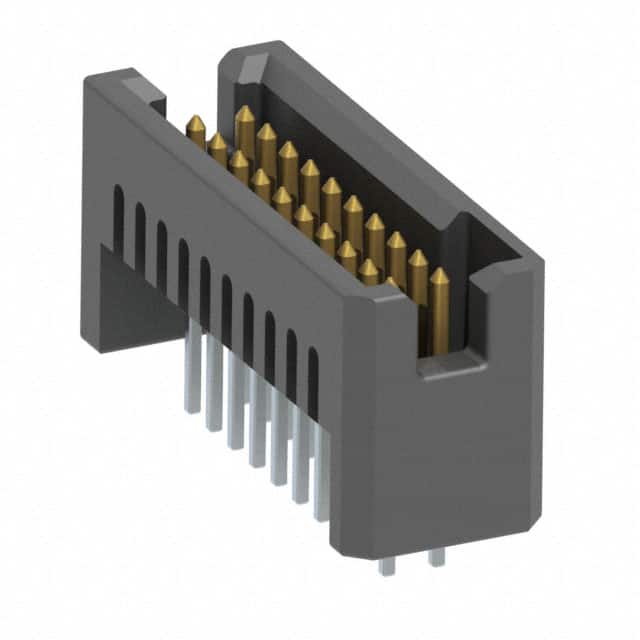

TFM-110-11-S-D Samtec TFM-110-11-S-D is a 20-position, 2-row, through-hole shrouded header with 1.27mm pitch, rated for 2.9A per contact and 275VAC.
Mfr Part #:

TFM-110-11-S-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TFM-110-11-S-D is a 20-position, 2-row, through-hole shrouded header with 1.27mm pitch, rated for 2.9A per contact and 275VAC.
✓ Total Stock: 108 pcs
$ Price Range: $2.33 - $3.55

TFM-110-11-S-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
108 pcs
On Request
108 pcs On Request 1 On Request On Request 2001 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TFM-110-11-S-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

TFM-110-11-S-D Description

Short technical summary and product information.

The Samtec TFM-110-11-S-D is a .050" (1.27mm) pitch Tiger Eye box header connector with 20 positions arranged in 2 rows. It features a shrouded 4-wall design for blind mating and uses phosphor bronze contacts with a tin finish (30µ" over 50µ" nickel). The insulator is black liquid crystal polymer (LCP) rated UL94 V-0.



This through-hole header supports board-to-board or cable applications and is rated for 2.9A per contact at 275VAC. It operates over -55°C to +125°C and is lead-free solderable. The connector is capable of 8 Gbps data rates and is designed for high-reliability applications.



The part is packaged in tubes with a standard quantity of 35. It mates with Samtec Tiger Eye socket and cable assemblies.

TFM-110-11-S-D Quick Information

Product Type: Header, Male Pins
Series: TFM
Canonical Name: Samtec TFM-110-11-S-D .050" Tiger Eye Box Header, 20 Position, 2 Row, Through Hole, Solder Termination
Subcategory: Male Pins

TFM-110-11-S-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TFM-110-11-S-D Estimated Pricing

Qty Low High
1+ $3.55 $3.55
25+ $3.27 $3.27
35+ $3.14 $3.14
525+ $2.93 $2.93
1,015+ $2.74 $2.74
2,520+ $2.53 $2.53
5,005+ $2.33 $2.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

TFM-110-11-S-D Features

  • 20 positions in 2 rows at 1.27mm pitch.
  • Shrouded 4-wall design for blind mating.
  • Rated 2.9A per contact at 275VAC.
  • Supports 8 Gbps data rate.
  • Operating temperature -55°C to +125°C.

TFM-110-11-S-D Applications

  • Board-to-board and cable interconnect systems.
  • High-reliability industrial and test equipment.
  • Data communication and signal routing.
  • Automated assembly and blind mating applications.

TFM-110-11-S-D FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TFM-110-11-S-D have?

20 positions in 2 rows.

What is the pitch of this connector?

1.27mm (0.050").

What is the current rating per contact?

2.9A per contact.

What is the voltage rating?

275VAC.

What mounting type does this header use?

Through hole with solder termination.

What is the operating temperature range?

-55°C to +125°C.

Is the TFM-110-11-S-D RoHS compliant?

RoHS3 compliant (unverified).
