| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

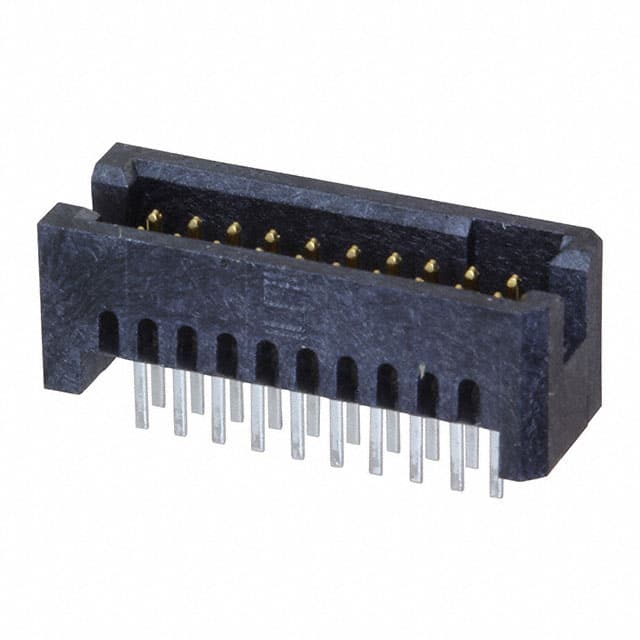

The Samtec TFM-110-01-S-D is a 20 position, double row, shrouded header connector from the TFM series. It features a 1.27mm pitch and a through hole mounting style with solder termination. The connector is designed for board-to-board or cable applications and utilizes Tiger Eye contacts for high reliability.
Key specifications include a current rating of 2.9A per contact, a voltage rating of 275VAC, and an operating temperature range of -55°C to 125°C. The contact material is phosphor bronze with a tin finish, and the insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The connector supports data rates up to 8 Gbps.
The TFM-110-01-S-D is packaged in tubes with a standard quantity of 36 parts per package. It is designed for applications requiring a robust, high-density interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.37 | $3.37 |
| 25+ | $3.09 | $3.09 |
| 36+ | $2.97 | $2.97 |
| 504+ | $2.78 | $2.78 |
| 1,008+ | $2.60 | $2.60 |
| 2,520+ | $2.39 | $2.39 |
| 5,004+ | $2.20 | $2.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm (0.050 inches).
It has 20 positions arranged in 2 rows.
The current rating is 2.9A per contact.
The voltage rating is 275VAC.
The mounting type is through hole.
The operating temperature range is -55°C to 125°C.
The contact material is phosphor bronze with a tin finish.
