TFM-105-02-S-D-A Samtec TFM-105-02-S-D-A is a 10 position, 2 row, shrouded header with a 1.27mm pitch. It features surface mount termination and is rated for 2.9A per contact and 275VAC.
Mfr Part #:

TFM-105-02-S-D-A

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TFM-105-02-S-D-A is a 10 position, 2 row, shrouded header with a 1.27mm pitch. It features surface mount termination and is rated for 2.9A per contact and 275VAC.
✓ Total Stock: 56 pcs
$ Price Range: $1.32 - $2.00

TFM-105-02-S-D-A Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
28 pcs
On Request
28 pcs On Request 1 On Request On Request On Request On Request On Request
Emiteli ✓
Non-Authorised Inventory information
28 pcs
On Request
28 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TFM-105-02-S-D-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

TFM-105-02-S-D-A Description

Short technical summary and product information.

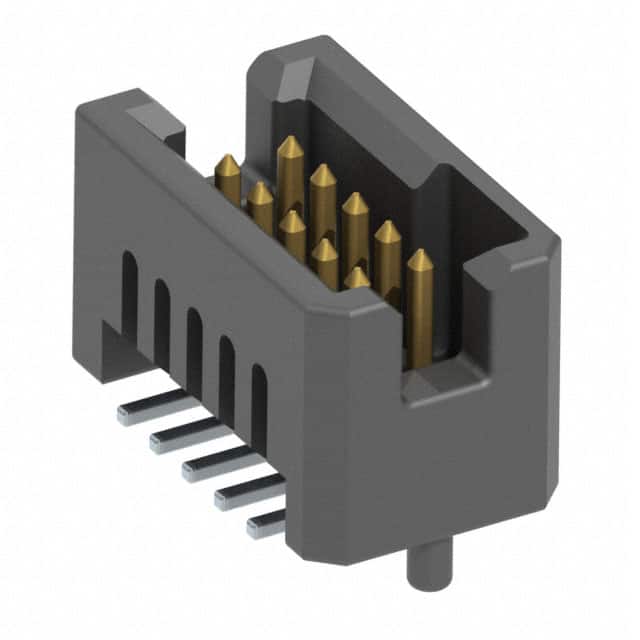

The Samtec TFM-105-02-S-D-A is a 10-position, 2-row shrouded header from the Tiger Eye series. It features a 1.27mm pitch and a 4-wall shrouded design for reliable mating. The connector uses male square pins with a tin contact finish over phosphor bronze, and the insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.



This header is designed for surface mount soldering and includes a board guide feature. It is rated for a current of 2.9A per contact and a voltage of 275VAC. The operating temperature range is -55°C to 125°C, making it suitable for a variety of environments. The contact length is 3.33mm and the insulation height is 5.60mm.



The TFM-105-02-S-D-A is suitable for board-to-board or cable applications. The push-pull fastening type provides secure connection. The part is lead-free solderable.

TFM-105-02-S-D-A Quick Information

Product Type: Header Connector
Series: TFM
Canonical Name: Samtec TFM Series 10 Position 2 Row Shrouded Header, Surface Mount, 1.27mm Pitch
Subcategory: Shrouded Header

TFM-105-02-S-D-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TFM-105-02-S-D-A Estimated Pricing

Qty Low High
1+ $2.00 $2.00
60+ $1.67 $1.67
120+ $1.53 $1.53
2,040+ $1.43 $1.43
5,040+ $1.32 $1.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

TFM-105-02-S-D-A Features

  • 10 position 2 row shrouded header.
  • 1.27mm pitch for high density.
  • Surface mount solder termination.
  • Rated for 2.9A per contact.
  • Operating temperature -55°C to 125°C.

TFM-105-02-S-D-A Applications

  • Suitable for board-to-board connections.
  • Used in cable-to-board applications.
  • Ideal for high-density interconnect designs.

TFM-105-02-S-D-A FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TFM-105-02-S-D-A have?

The TFM-105-02-S-D-A has 10 positions.

What is the pitch of this connector?

The pitch is 1.27mm (0.050").

What is the current rating of the TFM-105-02-S-D-A?

The current rating is 2.9A per contact.

What is the voltage rating of this header?

The voltage rating is 275VAC.

What is the mounting type for this part?

The mounting type is surface mount.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

Is the TFM-105-02-S-D-A a shrouded header?

Yes, it is a shrouded - 4 wall header.
