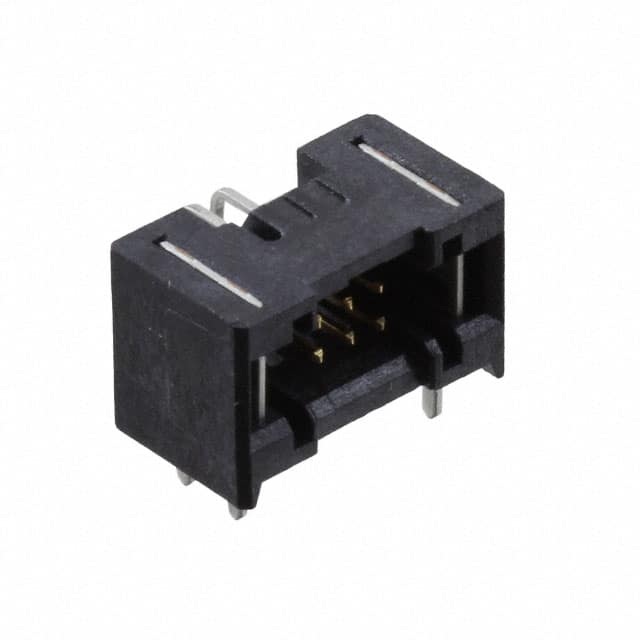

TFM-103-01-L-D-RE1-WT Samtec TFM-103-01-L-D-RE1-WT is a 6-position, 2-row elevated header with 1.27mm pitch, tin-plated phosphor bronze contacts, and a through-hole right angle mounting style.
Mfr Part #:

TFM-103-01-L-D-RE1-WT

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TFM-103-01-L-D-RE1-WT is a 6-position, 2-row elevated header with 1.27mm pitch, tin-plated phosphor bronze contacts, and a through-hole right angle mounting style.
✓ Total Stock: 3 pcs
$ Price Range: $1.53 - $2.60

TFM-103-01-L-D-RE1-WT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TFM-103-01-L-D-RE1-WT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

TFM-103-01-L-D-RE1-WT Description

Short technical summary and product information.

The Samtec TFM-103-01-L-D-RE1-WT is a 6-position, 2-row elevated header from the Tiger Eye TFM series. It features a 1.27mm pitch and is designed for board-to-board or cable applications. The connector is shrouded with four walls and uses a push-pull fastening mechanism.



This header is rated for 2.9A per contact at 275VAC, with an operating temperature range of -55°C to +125°C. Contacts are made of phosphor bronze with a tin finish of 15.0µin (0.38µm). The insulation is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.



The through-hole right angle termination with solder retention features ensures reliable mechanical connection to the PCB. The material system is lead-free solderable per Samtec specifications.

TFM-103-01-L-D-RE1-WT Quick Information

Product Type: Header, Male Pins
Series: TFM
Canonical Name: Samtec TFM-103-01-L-D-RE1-WT — Shrouded Header, Elevated, 6 Positions, 1.27mm Pitch, Through-Hole Right Angle
Subcategory: Board-to-Board Connector

TFM-103-01-L-D-RE1-WT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TFM-103-01-L-D-RE1-WT Estimated Pricing

Qty Low High
1+ $2.60 $2.60
52+ $2.42 $2.42
1,040+ $2.11 $2.11
2,028+ $2.10 $2.10
5,044+ $1.53 $1.53

Estimated market price range - modelled values for guidance only, not live distributor offers.

TFM-103-01-L-D-RE1-WT Features

  • Six positions in two rows for compact design.
  • 1.27mm pitch for high-density interconnects.
  • Shrouded four-wall housing with push-pull latching.
  • Rated for 2.9A per contact at 275VAC.
  • Through-hole right angle mounting with solder retention.

TFM-103-01-L-D-RE1-WT Applications

  • Used in board-to-board stacking applications.
  • Suitable for cable-to-board interconnect systems.
  • Common in compact electronic module connections.

TFM-103-01-L-D-RE1-WT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the TFM-103-01-L-D-RE1-WT?

The pitch is 1.27mm (0.050").

How many positions does this header have?

It has 6 positions arranged in 2 rows, all loaded.

What is the current rating per contact?

The current rating is 2.9A per contact.

What is the voltage rating?

The voltage rating is 275VAC.

What mounting type does this connector use?

It is a through-hole, right angle mounting type.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

Is the TFM-103-01-L-D-RE1-WT RoHS compliant?

RoHS status is listed as RoHS3 compliant but is unverified.
