| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,096 pcs
|
1096 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
970 pcs
|
970 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Dimensions | |
| Idle Current, Typ @ 25°C | |
| Idle Supply Current (Unspecified condition) | |
| Link Distance (Unspecified condition) | |
| Link Range, Low Power | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Orientation | |
| Standards | |
| Tape & Reel | |
| Voltage |

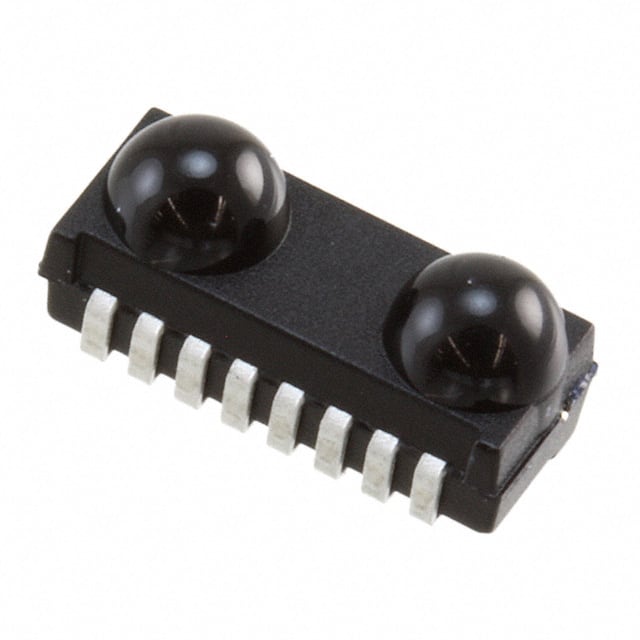

The TFDU4101-TT3 is an infrared transceiver module from Vishay Dale designed for IrDA applications. It supports data rates up to 115.2 kbit/s according to the IrDA standard, with a typical link distance of 1 meter. The module integrates a PIN photodiode, an infrared emitter, and a low-power control IC.
Key electrical specifications include an operating voltage range of 2.4V to 5.5V and a low idle current of 75 µA typical at 25°C. The module operates within a temperature range of -30°C to 85°C.
This transceiver is housed in a compact 4.0mm x 9.7mm x 4.7mm surface mount package, oriented for top view. It is supplied in standard tape and reel packaging with 1000 pieces per reel.
The TFDU4101-TT3 complies with the IrPHY 1.0 standard, making it suitable for short-distance wireless communication and data transfer in environments where RF might be problematic.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TFDU4101-TT3 supports data rates up to 115.2 kbit/s (SIR).
The operating voltage range is 2.4 V to 5.5 V.
The typical idle current consumption is 75 µA at 25°C.
The operating temperature range is -30°C to 85°C.
The module supports a link distance of up to 1 meter.
The module dimensions are 4.0mm x 9.7mm x 4.7mm.
It complies with the IrPHY 1.0 standard.
