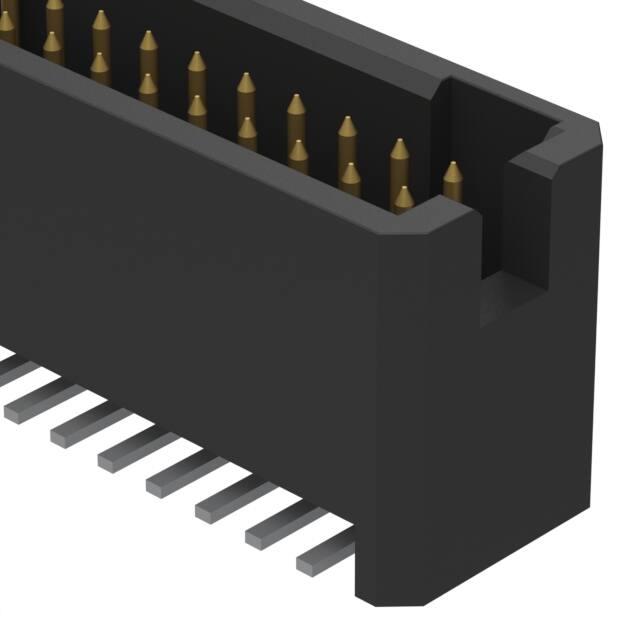

TFC-120-12-F-D-K-TR Samtec TFC-120-12-F-D-K-TR is a 40-position, 2-row, shrouded header with 1.27mm pitch, designed for board-to-board or cable applications. It features surface mount termination, tin-plated phosphor bronze contacts, and a black LCP insulator rated UL94 V-0.
Mfr Part #:

TFC-120-12-F-D-K-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TFC-120-12-F-D-K-TR is a 40-position, 2-row, shrouded header with 1.27mm pitch, designed for board-to-board or cable applications. It features surface mount termination, tin-plated phosphor bronze contacts, and a black LCP insulator rated UL94 V-0.
✓ Total Stock: 43 pcs
$ Price Range: $3.51

TFC-120-12-F-D-K-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
43 pcs
On Request
43 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TFC-120-12-F-D-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

TFC-120-12-F-D-K-TR Description

Short technical summary and product information.

The Samtec TFC-120-12-F-D-K-TR is a 40-position, 2-row, shrouded header with a 1.27mm pitch, part of the TFC series. It features a 4-wall shrouded design for improved mating alignment and protection. The contacts are made of phosphor bronze with a tin finish (3.00µin thickness), rated for 3.1A per contact and 275VAC. The insulator is black Liquid Crystal Polymer (LCP) with a flammability rating of UL94 V-0. This header supports surface mount solder termination and is suitable for board-to-board or cable applications. The operating temperature range is -55°C to 125°C. Packaging is inferred as Tape & Reel based on the -TR suffix.

TFC-120-12-F-D-K-TR Quick Information

Product Type: Header, Male Pins
Series: TFC
Canonical Name: Samtec TFC-120-12-F-D-K-TR Header, Male Pins, 40 Position, 1.27mm Pitch, Surface Mount
Subcategory: Male Pins

TFC-120-12-F-D-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TFC-120-12-F-D-K-TR Estimated Pricing

Qty Low High
275+ $3.51 $3.51

Estimated market price range - modelled values for guidance only, not live distributor offers.

TFC-120-12-F-D-K-TR Features

  • 40 positions in 2 rows with 1.27mm pitch.
  • Shrouded 4-wall design for mating alignment.
  • Rated for 3.1A per contact and 275VAC.
  • Surface mount termination with tin-plated contacts.
  • Operating temperature range -55°C to 125°C.

TFC-120-12-F-D-K-TR Applications

  • Board-to-board interconnects in compact electronics.
  • Cable-to-board connections requiring high-density pin count.
  • Applications needing shrouded header for robust mating.

TFC-120-12-F-D-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TFC-120-12-F-D-K-TR have?

40 positions, all loaded, in 2 rows.

What is the pitch of this header?

1.27mm (0.050")

What is the current rating per contact?

3.1A per contact.

What is the voltage rating?

275VAC.

What is the mounting type?

Surface mount with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Tin with 3.00µin (0.076µm) thickness.
