| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
99 pcs
|
99 pcs | On Request | 1 | On Request | On Request | 2111 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Data Rate | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

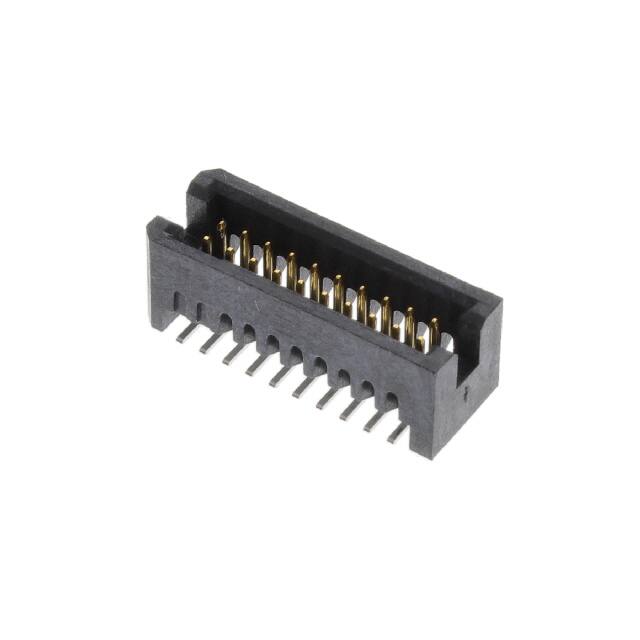

The Samtec TFC-110-02-F-D is a cost-effective, shrouded header from the Tiger Eye TFC series, designed for high-reliability board-to-board and cable-to-board applications. It features 20 positions arranged in 2 rows with a 1.27mm (0.050") pitch, and a vertical surface mount orientation. The connector uses phosphor bronze contacts with a gold flash on the post and matte tin on the tail, housed in a black liquid crystal polymer (LCP) insulator rated UL94 V-0.
Electrical ratings include a maximum current of 2.9A per contact, a voltage rating of 275VAC / 388VDC, and a data rate capability of up to 8 Gbps. The operating temperature range is -55°C to 125°C. The contact post diameter is 0.018" (0.46mm) and the stack height is 6.35mm (0.250"). The shrouded 4-wall design provides polarization and protection.
This header is supplied in a tube packaging with a standard quantity of 35 pieces per tube. It is intended for surface mount soldering and mates with Samtec Tiger Eye socket systems. The RoHS compliance is unverified but listed as RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.37 | $3.37 |
| 35+ | $2.52 | $2.52 |
| 105+ | $1.95 | $1.95 |
| 1,015+ | $1.71 | $1.71 |
| 2,030+ | $1.58 | $1.58 |
| 5,005+ | $1.36 | $1.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 20 positions (all loaded).
The pitch is 1.27mm (0.050").
The maximum current rating is 2.9A per contact.
The maximum voltage rating is 275VAC for AC and 388VDC for DC.
The connector is surface mount (SMD) with solder termination.
The operating temperature range is -55°C to 125°C.
The connector supports up to 8 Gbps.
