| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

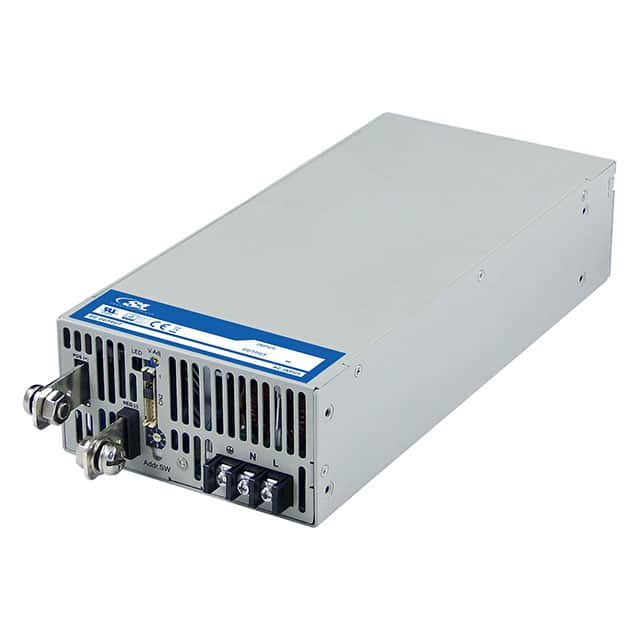

The SL Power Electronics TF1500A15K is an enclosed AC/DC converter designed for chassis mount installation. It delivers a single 15V output at 100A, providing 1500W of power with 90% typical efficiency. The converter includes an I²C interface for programmable output, remote on/off, remote sense, and a standby output. Power factor correction (PFC) is integrated, and the unit can also accept DC input. With a 3kV isolation rating, it is suitable for ITE (commercial) applications.
The converter measures 279.9mm x 127.0mm x 64.0mm and operates over a temperature range of -25°C to 60°C with derating. It is certified to CE, cURus, and TUV safety standards. The adjustable output and load sharing capability make it flexible for redundant or modular power system designs.
1500W.
100A.
3kV.
90%.
-25°C to 60°C with derating.
Chassis mount.
Adjustable output, DC input capable, I²C interface, load sharing, PFC, remote on/off, remote sense, standby output.
