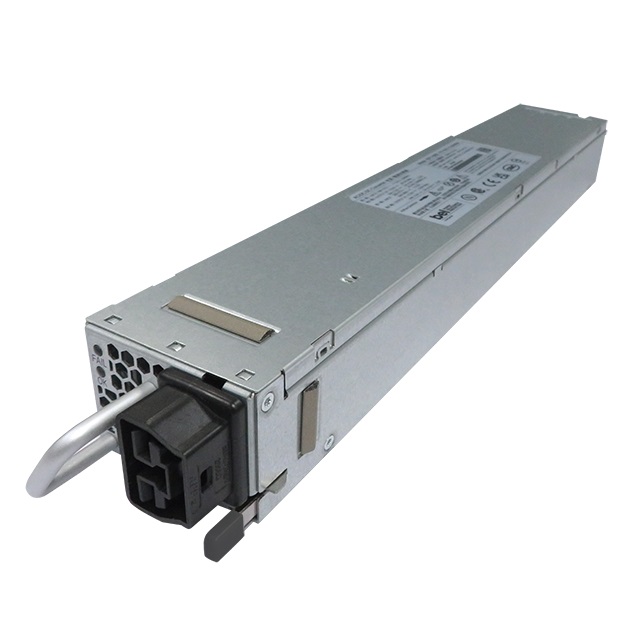

The Bel Power Solutions TET4000-48-069RA is a front-end AC to DC power supply designed for ITE applications. It delivers 3979W of power with a single 54.5VDC output. The converter operates with an input voltage range of 100 to 277 VAC and boasts a high efficiency of 97.4%.
Key features include adjustable output, power factor correction (PFC), remote on/off control, and a standby output. The unit is designed for rack mounting and has dimensions of 528.4mm x 69.0mm x 40.6mm. The operating temperature range is 0°C to 45°C, and it has a current rating of 73A.
This AC DC converter is suitable for various commercial applications requiring reliable power conversion. Its robust design and specifications make it a suitable choice for systems demanding high performance and efficiency.
0°C to 45°C.
54.5 VDC.
97.4%.
100 to 277 VAC.
1 output.
Rack mount.
528.4mm x 69.0mm x 40.6mm.
