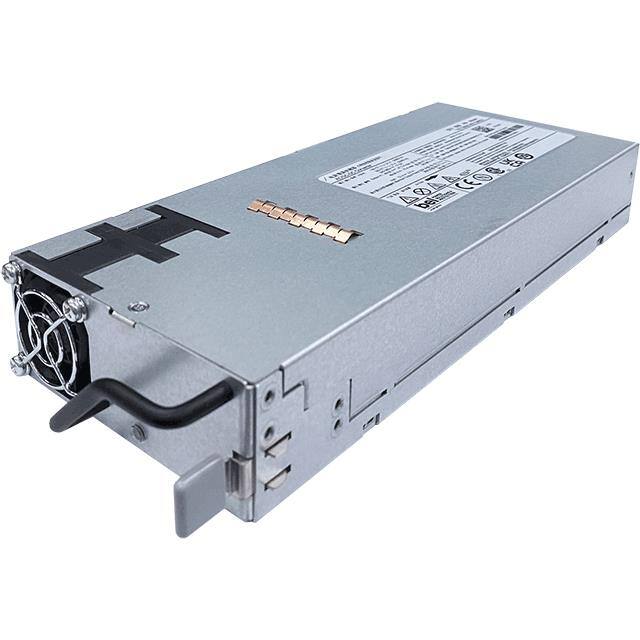

The Bel Power Solutions TET3600-48-104RA is a 3600 Watt AC-DC power-factor-corrected (PFC) front-end power supply. It converts AC mains power or high voltage DC bus voltages into a main output of 54.5 VDC, suitable for supplying 48 VDC power distribution in data center equipment, servers, routers, and network switches.
Key features include a best-in-class efficiency of up to 97% at half load and a wide input voltage range, operating at full power from 200-277 VAC or 240-380 VDC. It provides a 3600W main output and a 12 VDC / 30W standby output. The power supply is designed for high density with a rating of 44.4 W/in3 and features parallel operation with active current sharing and hot-plug capability.
This power supply meets international safety standards, including UL/CSA 62368-1 and IEC/EN 62368-1, and displays the CE-Mark for the European Low Voltage Directive (LVD). It operates within a temperature range of 0°C to 45°C. The unit is housed in a compact form factor suitable for rack mounting.
Applications include high-performance servers, routers and switches, data centers, and industrial power supplies. The TET3600-48-104RA utilizes full digital controls and I2C communication interfaces for control, programming, and monitoring, along with over-temperature, output overvoltage, and overcurrent protection.
The main output voltage is 54.5 VDC.
The standby output is 12 VDC at 30 W.
The power output is 3600W.
The efficiency is up to 97% at half load, with a typical rating of 96.6%.
The operating temperature range is 0°C to 45°C.
It meets UL/CSA 62368-1 and IEC/EN 62368-1 standards.
It uses Rack Mount.
