| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cooling Type | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

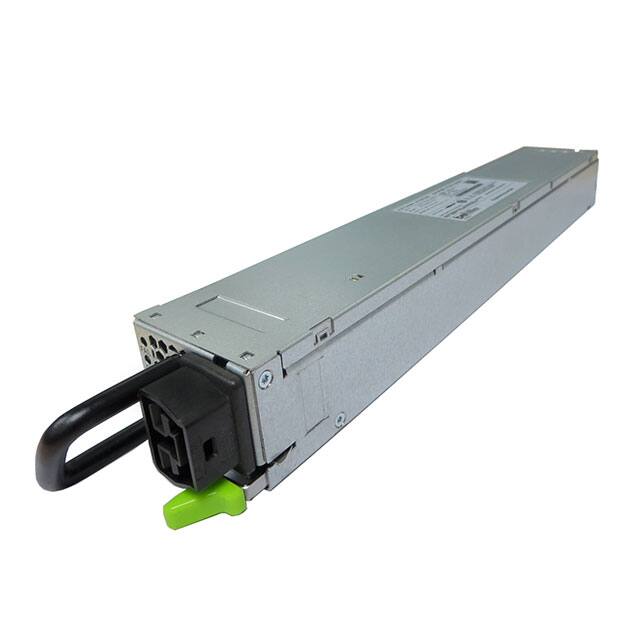

The TET1500-12-054NA is a 1500 Watt AC to DC power-factor-corrected (PFC) power supply from Bel Power Solutions. It converts standard AC or HVDC power into a main output of 12 VDC, suitable for powering intermediate bus architectures (IBA) in high-performance servers, routers, and network switches.
Key specifications include a 1500W power rating, a 12VDC output voltage, and a wide input voltage range of 90-300 VAC or 180-400 VDC. The unit operates efficiently with 96% typical efficiency and features active analog current sharing for parallel operation. It includes a standby output of 5VDC.
Designed for demanding applications, this converter operates within a temperature range of -5°C to +50°C and utilizes fan cooling for thermal management. Its dimensions are 321.5mm x 54.5mm x 40.0mm, and it is designed for rack mounting. Features include hot-swappable capability, an I²C communication interface for control and monitoring, and power factor correction (PFC).
The TET1500-12-054NA has a power output of 1500W.
The input voltage range is 90 to 300 VAC or 180 to 400 VDC.
The main output voltage is 12 VDC.
The operating temperature range is -5°C to +50°C.
The dimensions are 321.5mm x 54.5mm x 40.0mm.
Yes, the TET1500-12-054NA features power factor correction (PFC).
