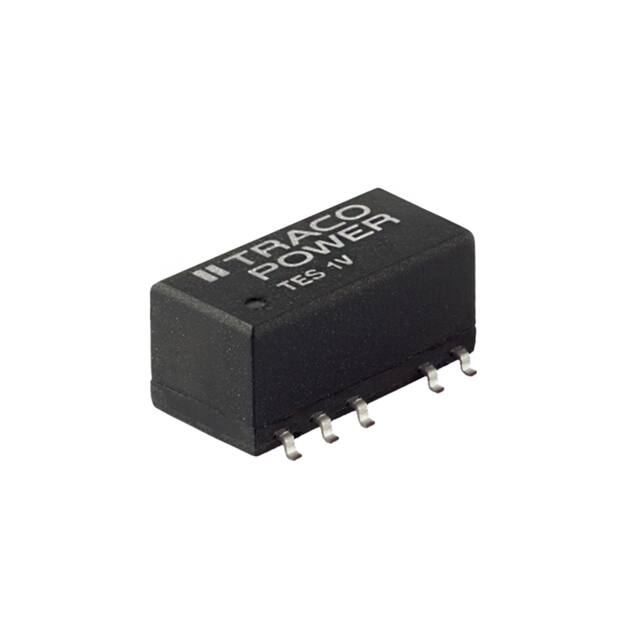

TES 1-1212V Traco Power TES 1-1212V is a 1W isolated DC-DC converter providing a regulated 12V output from a 12V nominal input. It is housed in a compact 12-SMD module with 3000VDC isolation.
Mfr Part #:

TES 1-1212V

Available from 1 distributors
Mfr Name: Traco Power
Traco Power
Traco Power TES 1-1212V is a 1W isolated DC-DC converter providing a regulated 12V output from a 12V nominal input. It is housed in a compact 12-SMD module with 3000VDC isolation.
✓ Total Stock: 50 pcs
$ Price Range: $7.86 - $10.70

TES 1-1212V Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TES 1-1212V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
SVHC Present
Tape & Reel
Type
Voltage
Width
View Similar Products (0)

TES 1-1212V Description

Short technical summary and product information.

The Traco Power TES 1-1212V is a miniature 1W isolated DC-DC converter in a 12-pin SMD package. It accepts a nominal 12VDC input (range 10.8 to 13.2VDC) and delivers a single 12VDC output at 84mA with typical efficiency of 80%.



This unregulated converter offers 3000VDC input-to-output isolation, making it suitable for board-level power distribution in industrial and telecom applications. It features short circuit protection and a wide operating temperature range of -40°C to +85°C (with derating).



The device is packaged in a small 16.3mm x 8.0mm x 8.0mm SMD module qualified for lead-free reflow soldering per IPC/JEDEC J-STD-020E. Tape and reel packaging is available for automated assembly.

TES 1-1212V Quick Information

Product Type: DC-DC Converter
Series: TES 1V
Canonical Name: Traco Power TES 1-1212V Isolated DC-DC Converter, 1W, 12V Output
Subcategory: 1W SMD Module

TES 1-1212V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TES 1-1212V Estimated Pricing

Qty Low High
1+ $10.70 $10.70
10+ $9.69 $9.69
20+ $9.54 $9.54
50+ $9.25 $9.25
100+ $8.35 $8.35
200+ $8.05 $8.05
500+ $7.93 $7.93
1,000+ $7.86 $7.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

TES 1-1212V Features

  • 1W isolated DC-DC converter.
  • 12V input, 12V output at 84mA.
  • 3000VDC input-output isolation.
  • SMD package, 16.3x8.0x8.0 mm.
  • Short circuit protection included.

TES 1-1212V Applications

  • Industrial and telecom board power.
  • Distributed power architectures.
  • Isolated sensor interfaces.
  • Low-power embedded systems.

TES 1-1212V FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the TES 1-1212V?

The output voltage is 12 VDC with a maximum output current of 84 mA.

What is the input voltage range for this converter?

The input voltage range is 10.8 to 13.2 VDC, with a nominal input of 12 VDC.

What is the isolation voltage of the TES 1-1212V?

The input-to-output isolation voltage is 3000 VDC.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C with derating.

What package is the TES 1-1212V available in?

It is available in a 12-SMD module (10 leads) with surface mount mounting. Tape and reel packaging is also offered.

Is the TES 1-1212V RoHS compliant?

RoHS compliance is listed as RoHS3 Compliant, but this status is unverified and should be confirmed with the manufacturer.
