| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

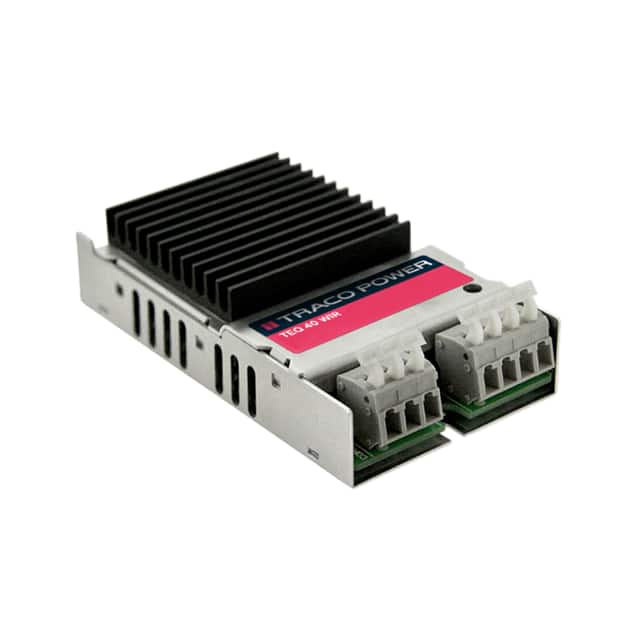

This Traco Power TEQ 40-7223WIR is an enclosed DC/DC converter delivering 40W of power with dual outputs of +/-15V at 1.33A each. It features a chassis mount design for easy integration into systems.
The converter operates with 88% efficiency and has a wide operating temperature range of -40°C to 92°C, with derating applied at higher temperatures. Its dimensions are 103.1mm in length, 57.2mm in width, and 26.2mm in height.
Designed for applications including ITE (Commercial) and Railway, this DC/DC converter holds CB, CE, and cURus agency approvals. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TEQ 40-7223WIR has dual outputs of -15V and +15V.
This DC/DC converter has a power rating of 40W.
The dimensions are 103.1mm in length, 57.2mm in width, and 26.2mm in height.
The operating temperature range is -40°C to 92°C, with derating applied.
It uses chassis mount.
The RoHS Status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
