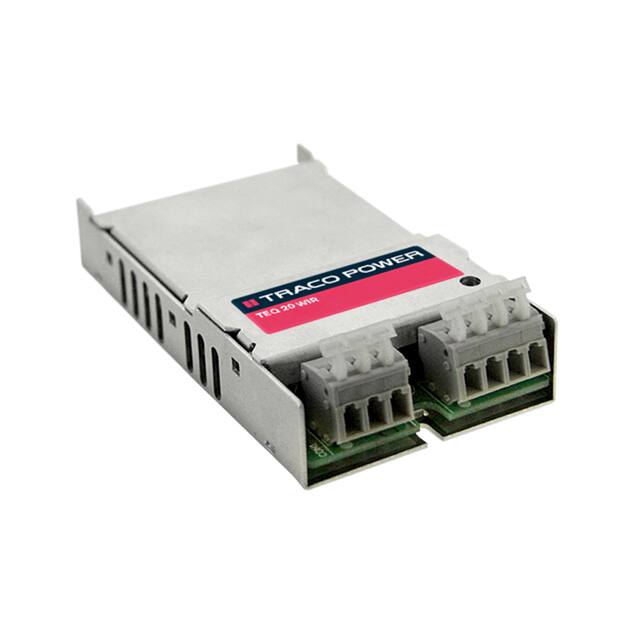

The Traco Power TEQ 20WIR series, including the TEQ 20-7211WIR model, offers isolated, high-performance DC/DC conversion in a rugged metal case suitable for industrial and railway applications. This specific unit provides a 5VDC output at up to 4A, delivering 20W of power.
It features an ultra-wide 4:1 input voltage range, specifically 43-160 VDC (nominal 110 VDC), making it versatile for various power systems. The converter boasts excellent efficiency up to 86% and a wide operating temperature range of -40°C to +93°C with derating, supported by its high power block with excellent thermal convection.
Designed for applications where PCB mounting is not feasible, the TEQ 20-7211WIR is intended for chassis mounting. It includes essential protection features such as under-voltage lockout, over-temperature protection, and short circuit protection. The converter also meets EN 55032 Class B input filter requirements and offers I/O isolation up to 1591 VAC.
Key specifications include a 20W power rating, 5VDC output, 4A maximum output current, and an input voltage range of 43-160 VDC. The operating temperature range is -40°C to 93°C (with derating). Its enclosed type and chassis mount design facilitate integration into industrial systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage ranges supported are 9-36V, 18-75V, and 43-160V.
The output voltage is 5 VDC.
It provides a maximum power of 20W.
The efficiency is 86%.
The isolation voltage is 1591 VAC.
It measures 103.1mm in length, 57.2mm in width, and 26.2mm in height.
Yes, it is RoHS3 compliant.
