| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

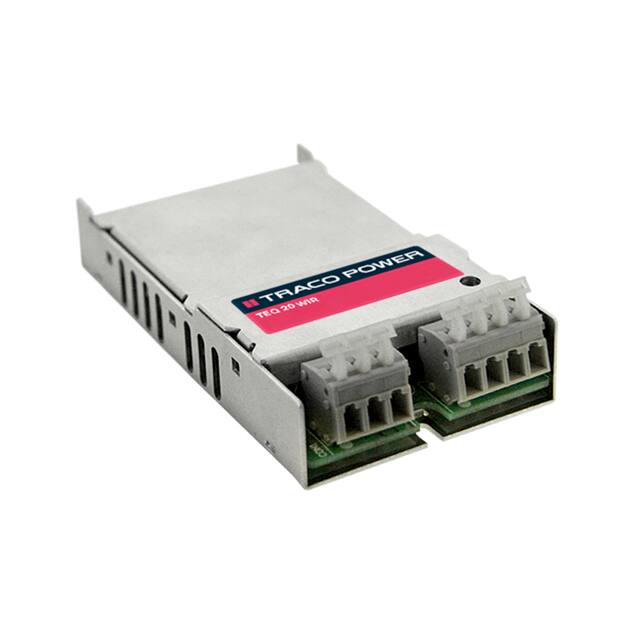

The TRACO Power TEQ 20WIR Series, including the TEQ 20-2423WIR model, offers isolated high-performance DC/DC conversion in a rugged metal case. This series is designed for industrial applications where chassis mounting is required, providing excellent thermal convection.
The TEQ 20-2423WIR specifically delivers dual outputs of +/-15V DC at 667mA each, with a total power of 20W. It boasts an efficiency of up to 88% and operates across a wide temperature range of -40°C to +93°C with derating. Key electrical features include I/O isolation up to 1591 VAC and protection against overvoltage, overtemperature, and short circuits.
Designed for demanding environments, this converter meets EN 50155 approval for railway applications and features an input filter that meets EN 55032 class B standards. Its enclosed type and chassis mount capability make it suitable for integration into various systems where PCB mounting is not feasible.
Additional features include an under-voltage lockout circuit and a 3-year product warranty, underscoring its reliability for industrial and railway applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 9-36 VDC, 18-75 VDC, and 43-160 VDC depending on the specific application.
The device provides +15 VDC and -15 VDC outputs.
Each output can deliver a maximum of 667mA.
The typical efficiency is 88%.
It complies with IEC 62368-1 and UL 62368-1 standards.
-40°C to 93°C with derating.
