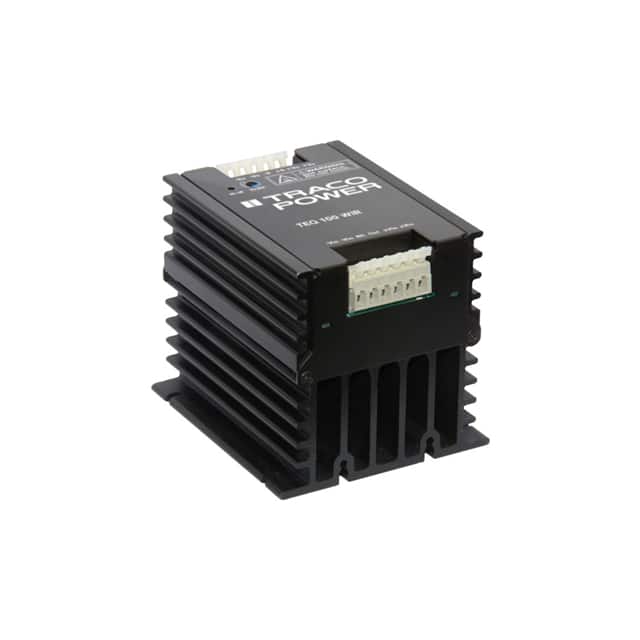

The TRACO Power TEQ 100-7212WIR is an enclosed DC DC converter from the TEQ 100WIR Series, designed for demanding applications including industrial, ITE, and railway environments. It features an ultra-wide 4:1 input voltage range of 43-160 VDC, providing flexibility for various power sources.
This converter delivers a nominal 12VDC output at a maximum current of 8.4A, with an output power rating of 101W. It boasts an efficiency of 89% and offers an adjustable output voltage range of -20% to +10%. The unit is built for robust performance, with an operating temperature range of -40°C to 105°C without derating, and features excellent thermal convection.
Designed for chassis mounting, the TEQ 100-7212WIR includes I/O isolation of 1591 VAC and meets EN 50155 approval for railway applications. It also incorporates an input filter meeting EN 55022 class A and an under-voltage lockout circuit for system protection. The converter is approved by CB, cULus, and cURus agencies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 43 to 160 VDC.
The output voltage is 12 VDC with a maximum current of 8.4A.
The power rating is 101W.
The operating temperature range is -40°C to 105°C.
It is designed for chassis mounting.
Yes, it has EN 50155 approval for railway applications.
