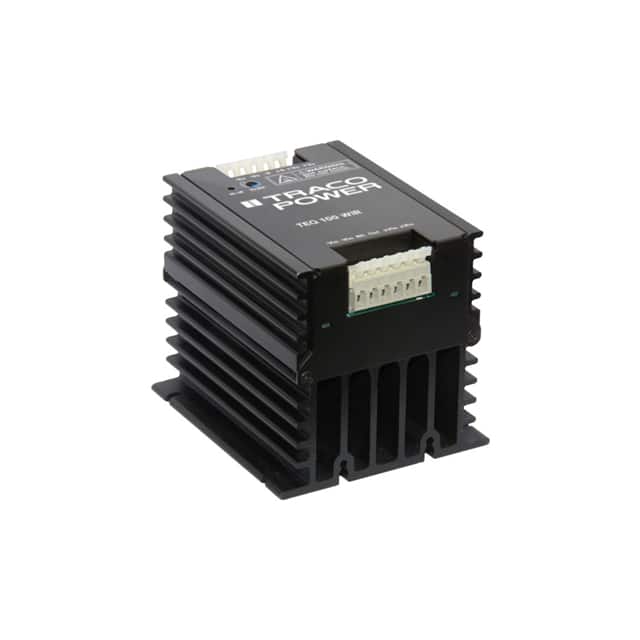

The TEQ 100-4815WIR from Traco Power is a 101 Watt DC/DC railway converter designed for industrial, ITE, and railway applications. This enclosed module features a chassis mount for easy integration into systems where PCB mounting is not feasible.
With an ultra-wide 4:1 input voltage range of 19-75 VDC (48 VDC nominal), it provides a stable 24 VDC output at 4.2A. The converter boasts high efficiency up to 90% and operates across a wide temperature range of -40°C to +85°C without derating, extending to +95°C with derating. It includes features such as output voltage trimming and remote On/Off functionality.
The unit offers 1591 VAC I/O isolation and meets EN 55022 Class A for input filtering. Its rugged, sealed metal case enhances shock and vibration resistance, making it suitable for demanding environments. The dimensions are 103.1mm x 88.9mm x 87.6mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 19 to 75 VDC.
The output voltage is 24 VDC.
The maximum output current is 4.2A.
The efficiency is 90%.
The I/O isolation voltage is 1591 VAC.
It operates from -40°C to +85°C without derating and up to +95°C with power derating.
