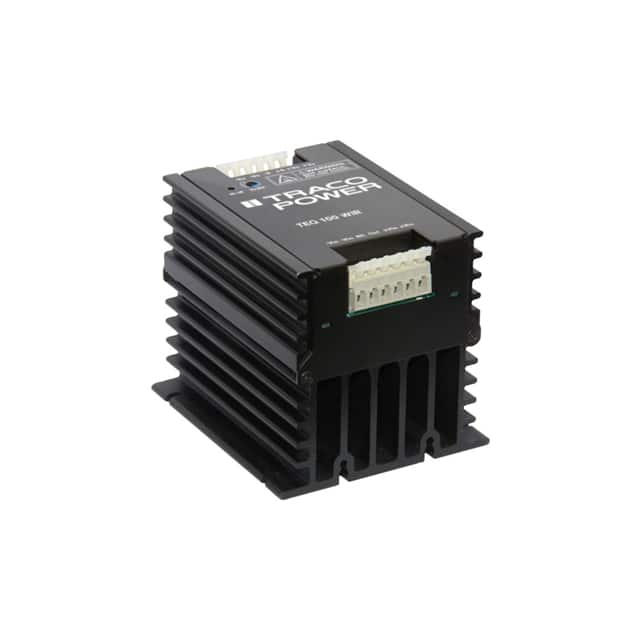

The Traco Power TEQ 100WIR series, including the TEQ 100-2415WIR model, offers high-performance isolated DC/DC conversion in a rugged, sealed metal case. This enclosed converter is designed for chassis mounting and operates with an ultra-wide 4:1 input voltage range.
Key electrical specifications include a nominal 24V output voltage, adjustable from 19.2V to 26.4V, and a maximum output current of 4.2A, delivering up to 101W of power. It boasts a high efficiency of 90% and provides 1591 VAC (2.25 kV) of I/O isolation. The operating temperature range is -40°C to +105°C, with specific conditions for derating mentioned in the datasheet.
Designed for demanding environments, the TEQ 100-2415WIR meets EN 50155 approval for railway applications and is suitable for industrial and ITE (Commercial) use. Its robust construction offers increased shock and vibration resistance. The unit includes features like under-voltage lockout and an internal input filter meeting EN 55022 Class A standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 19V to 75V DC.
The output voltage is 24 VDC with an adjustable range of 19.2 to 26.4 VDC.
The maximum output current is 4.2A.
The typical efficiency is 90%.
The electrical isolation voltage is 1591 VAC.
It operates from -40°C to +85°C without derating.
It comes in an enclosed box package designed for chassis mounting.
