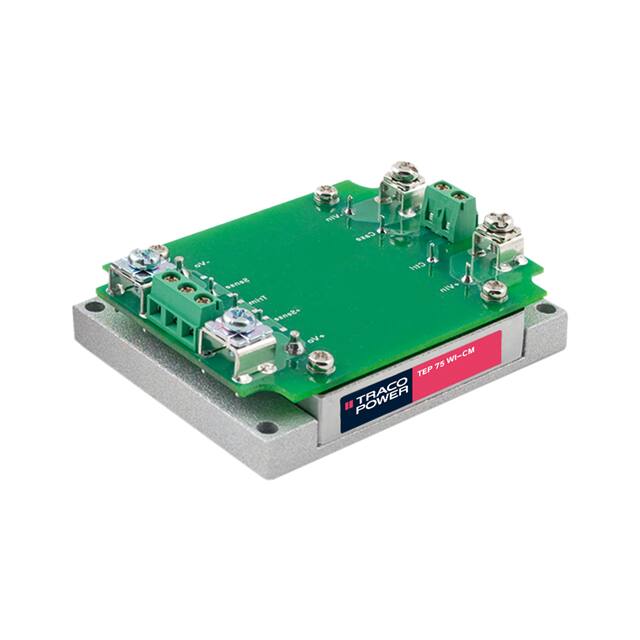

The Traco Power TEP 75WI Series TEP 75-7218WI-CM is an open-frame DC DC converter designed for demanding applications. It features a wide 43-160 VDC input voltage range, suitable for various power systems, and provides a stable 48 VDC output at up to 1.6A, delivering a total of 77W of power.
This converter is built with a rugged, compact metal case and is suitable for chassis mounting. It operates reliably across a broad temperature range of -40°C to 75°C, ensuring performance in diverse environmental conditions. Key electrical specifications include 90% typical efficiency and 3 kV isolation voltage. The series is approved by CB, CE, and cURus, and meets EN 50155 standards for railway applications.
Further features include undervoltage lockout and input protection filters. An optional screw terminal adapter is available for easier connection. The TEP 75WI series is designed for high performance and reliability in industrial and railway environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TEP 75-7218WI-CM has an input voltage range of 43 to 160 VDC.
The TEP 75-7218WI-CM provides a 48 VDC output at a maximum current of 1.6A.
The TEP 75-7218WI-CM has a power rating of 77W.
The operating temperature range for the TEP 75-7218WI-CM is -40°C to 75°C.
The dimensions are 85.1mm in length, 61.0mm in width, and 27.9mm in height.
The TEP 75-7218WI-CM is approved by CB, CE, and cURus.
Yes, the TEP 75WI Series has EN 50155 approval for railway applications.
