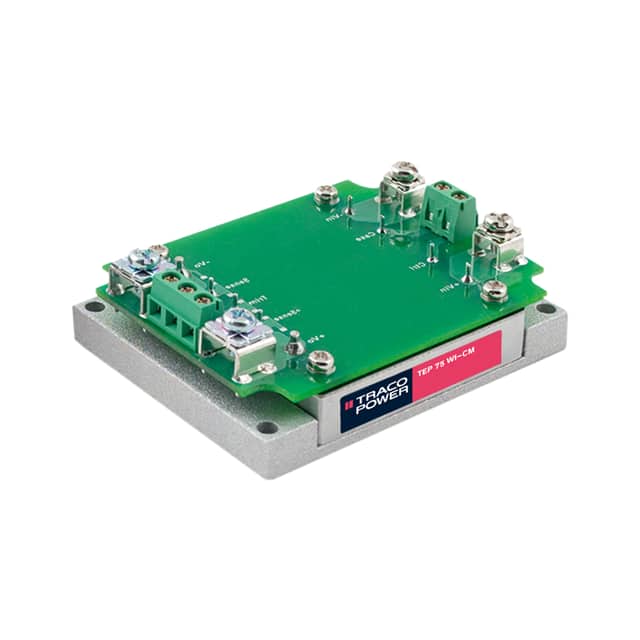

The Traco Power TEP 75WI Series DC DC converter, model TEP 75-7213WI-CM, is a robust 75 Watt unit designed for demanding applications. It features an open frame, chassis mount design for easy integration into systems.
This converter operates with a wide input voltage range of 43 to 160 VDC, nominal 110 VDC, and provides a stable 15 VDC output at up to 5000 mA. It boasts a high efficiency of 91% typical and can operate at full load up to +60°C with convection cooling, with a broader operating temperature range of -40°C to 75°C.
Key features include 3 kV isolation voltage, making it suitable for ITE (Commercial) and Railway applications. The compact dimensions of 85.1mm x 61.0mm x 27.9mm facilitate installation in space-constrained environments. Additional features mentioned in the datasheet include undervoltage lockout, input protection filter, output voltage trimming, and remote On/Off functionality.
Compliance is met with CB, CE, and cURus approvals. The unit is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected. A screw terminal adaptor is available for simplified connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TEP 75-7213WI-CM has a nominal output voltage of 15 VDC.
The input voltage range for the TEP 75-7213WI-CM is 43 to 160 VDC.
The maximum output current for the TEP 75-7213WI-CM is 5000 mA.
The typical efficiency of the TEP 75-7213WI-CM is 91%.
The operating temperature range for the TEP 75-7213WI-CM is -40°C to 75°C.
The TEP 75-7213WI-CM is designed for chassis mounting.
The dimensions of the TEP 75-7213WI-CM are 85.1mm x 61.0mm x 27.9mm.
