| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

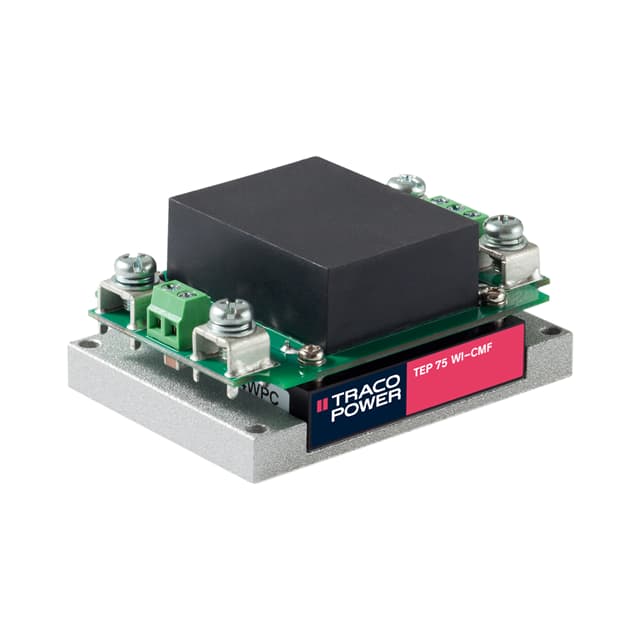

The TEP 75-4812WI-CMF from Traco Power is a 76 Watt DC/DC converter module designed for industrial and railway applications. It features an ultra-wide 4:1 input voltage range, nominal 48 VDC, and provides a 12 VDC output with a maximum current of 6.3A.
This converter boasts high efficiency of 90% and can operate at full load up to +60°C with natural convection cooling. The operating temperature range is -40°C to 75°C. It includes features such as output voltage trim, remote On/Off control, and undervoltage lockout for enhanced system stability.
Designed for chassis mounting with a screw terminal block, it offers a simple and robust installation method. The module also includes four threaded M3 inserts for easy attachment of heatsinks or direct chassis mounting. An optional DIN-rail mounting kit is available.
Key electrical specifications include a 3 kV isolation voltage and input protection filter. The TEP 75WICMF series is EN 50155 approved for railway applications and meets IEC 62368-1 and UL 62368-1 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 18 VDC to 75 VDC, with a nominal value of 48 VDC.
The output voltage is 12 VDC, adjustable from 9.6 VDC to 13.2 VDC, with a maximum output current of 6.3A.
The power rating is 76W.
The operating temperature range is -40°C to 75°C.
Yes, the TEP 75-4812WI-CMF features remote On/Off control.
