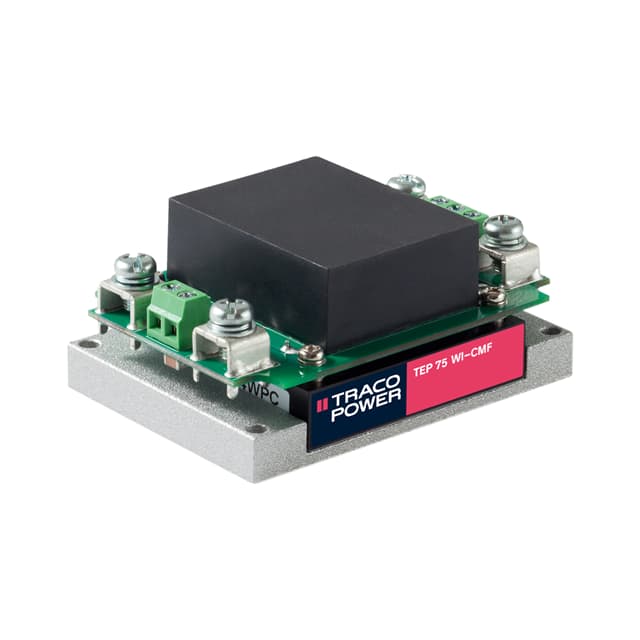

The Traco Power TEP 75-4810WI-CMF is part of the TEP 75WICMF series, offering high-performance DC/DC conversion. This unit is designed for chassis mounting with a screw terminal block, making it suitable for industrial applications where PCB mounting is not feasible. It features an ultra-wide 4:1 input voltage range and can operate at full load up to +60°C with natural convection cooling.
Key electrical specifications include 3kV isolation voltage and a nominal efficiency of 88%. The operating temperature range is -40°C to 85°C with derating. While the datasheet lists various optional models with specific output voltages and currents (e.g., 3.3V/20A, 5V/15A, 12V/6.3A), the exact nominal output for the TEP 75-4810WI-CMF is not explicitly detailed in the provided data.
This converter is approved by CB, CE, and cURus, and is suitable for ITE (Commercial) and Railway applications. The chassis mount design, combined with optional DIN-rail mounting kits, provides installation flexibility. It also includes features like undervoltage lockout and input protection filter.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TEP 75WICMF series offers ultra-wide 4:1 input voltage ranges, including 9-36 VDC, 18-75 VDC, and 43-160 VDC depending on the specific model.
The datasheet lists optional models with 3.3 VDC output, but the specific nominal output voltage for the TEP 75-4810WI-CMF is not explicitly stated.
The datasheet lists optional models with up to 20,000 mA (20A) output current, but the specific maximum output current for the TEP 75-4810WI-CMF is not explicitly stated.
The operating temperature range is -40°C to 85°C with derating. It can operate at full load up to +60°C with convection cooling.
The TEP 75-4810WI-CMF has CB, CE, and cURus approvals.
This converter is suitable for ITE (Commercial) and Railway applications.
