| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

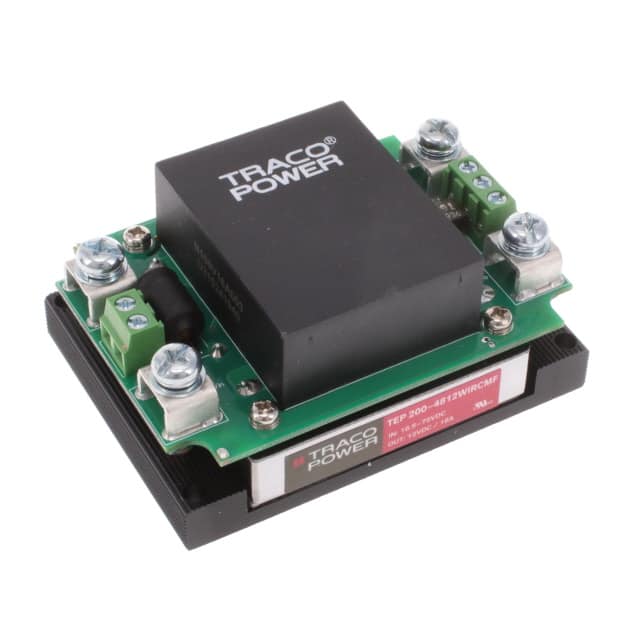

The Traco Power TEP 200-4812WIRCMF is an open frame DC DC converter with a power rating of 216W. Designed for chassis mounting, this unit provides a single output of 18A.
Key electrical specifications include 90% efficiency and an isolation voltage of 3 kV. The converter operates across a wide temperature range from -40°C to 75°C, making it suitable for demanding environments. It is approved by CB, CE, and cURus agencies.
With dimensions of 85.1mm x 61.0mm x 38.9mm, the TEP 200-4812WIRCMF is compact for its power output. Its applications include ITE (Commercial) and Railway sectors, highlighting its versatility and robustness.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TEP 200-4812WIRCMF has a power output of 216W.
The converter provides an output current of 18A.
This DC DC converter is designed for chassis mounting.
The operating temperature range is -40°C to 75°C.
Applications include ITE (Commercial) and Railway sectors.
The efficiency of this DC DC converter is 90%.
