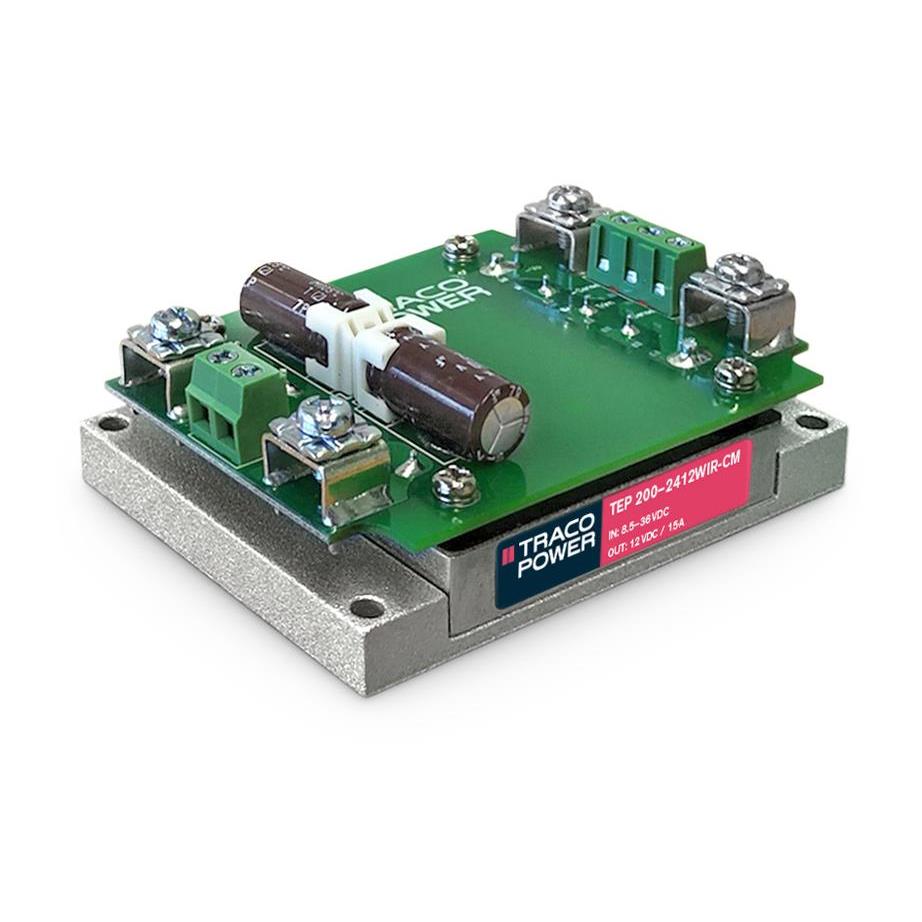

The TEP 200WIRCM Series from Traco Power offers high-performance, isolated DC/DC converter modules in an enclosed chassis mount package with screw terminal blocks. This series features ultra-wide 4:1 input voltage ranges, including 9-36 VDC, 18-75 VDC, and 43-160 VDC, making them suitable for battery-operated systems.
With a power rating of 182W and a 28V output at 6.5A, this converter boasts high efficiency up to 91%. It operates at full power at 25°C with 100 LFM airflow and can operate at 60°C with 40% power derating. The unit includes features like soft start, under-voltage lock-out, and adjustable output voltage (+10 / -20%).
Designed for demanding applications, the TEP 200WIRCM Series is approved for railway applications according to EN 50155 and meets IEC/UL 62368-1 standards. Typical applications include telecom/datacom, industrial control, and onboard power distribution in railway systems. An optional DIN-rail mounting kit is available.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 28 VDC.
The maximum output current is 6.5A.
The power rating is 182W.
The efficiency is up to 91%.
The operating temperature range is -40°C to 75°C.
The input voltage ranges are 9-36 VDC, 18-75 VDC, and 43-160 VDC.
Yes, the output voltage is adjustable by +10 / -20%.
