| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

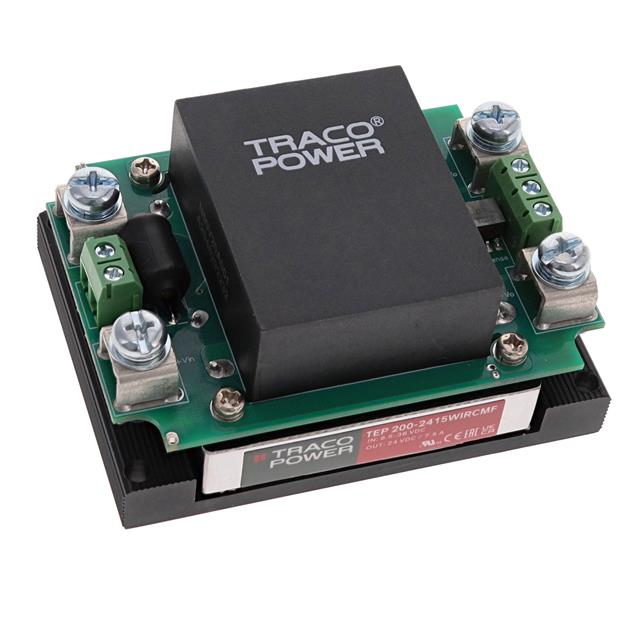

The Traco Power TEP 200-2415WIRCMF is an open frame DC DC converter designed for various applications, including ITE (Commercial) and Railway. It operates with an input voltage range of 9V to 36V and delivers a stable 24V output at a maximum current of 7.5A, providing a total power of 180W.
This converter boasts a high efficiency of 90% and features an isolation voltage of 3 kV. Its compact dimensions are 85.1mm x 61.0mm x 38.9mm, making it suitable for space-constrained designs. The mounting type is chassis mount, facilitating easy integration into systems.
Key specifications include a wide operating temperature range from -40°C to 75°C, ensuring reliable performance in demanding environments. It has a single output and is compliant with RoHS3 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TEP 200-2415WIRCMF provides a 24V output voltage at a maximum current of 7.5A.
The TEP 200-2415WIRCMF has a power rating of 180W.
The input voltage range for the TEP 200-2415WIRCMF is 9V to 36V.
The operating temperature range is -40°C to 75°C.
The TEP 200-2415WIRCMF uses chassis mount.
Yes, the TEP 200-2415WIRCMF is RoHS3 Compliant.
