| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

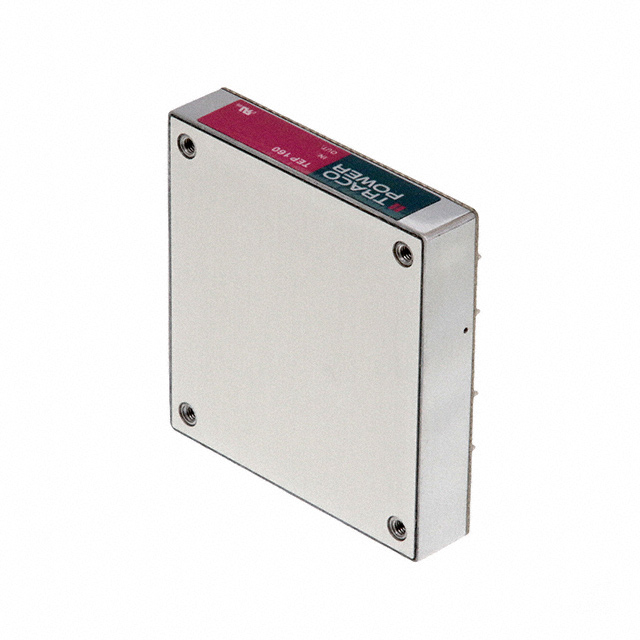

The TEP 160WIRCM Series from Traco Power offers a family of isolated, high-performance DC/DC converter modules designed for demanding applications. This specific model, TEP 160-7211WIRCM, is an enclosed unit with a 5V output and a maximum current of 32A, delivering a total power of 160W.
Key electrical specifications include an efficiency of up to 90% and an isolation voltage of 3 kV. The converter supports ultra-wide 4:1 input voltage ranges, making it suitable for battery-operated systems. It operates within an ambient temperature range of -40°C to 75°C with derating.
Designed for industrial and railway environments, this DC/DC converter features a chassis mount type with screw terminal blocks for secure installation. Its dimensions are 85.1mm x 61.0mm x 33.8mm. The series is approved for railway applications under EN 50155 and meets IEC/UL 62368-1 safety standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TEP 160-7211WIRCM has an output voltage of 5V and a maximum output current of 32A.
The TEP 160-7211WIRCM has a power rating of 160W.
The efficiency of the TEP 160-7211WIRCM is up to 90%.
The dimensions of the TEP 160-7211WIRCM are 85.1mm x 61.0mm x 33.8mm.
The operating temperature range for the TEP 160-7211WIRCM is -40°C to 75°C with derating.
The TEP 160-7211WIRCM is suitable for ITE (Commercial) and Railway applications.
Yes, the TEP 160-7211WIRCM features chassis mounting.
