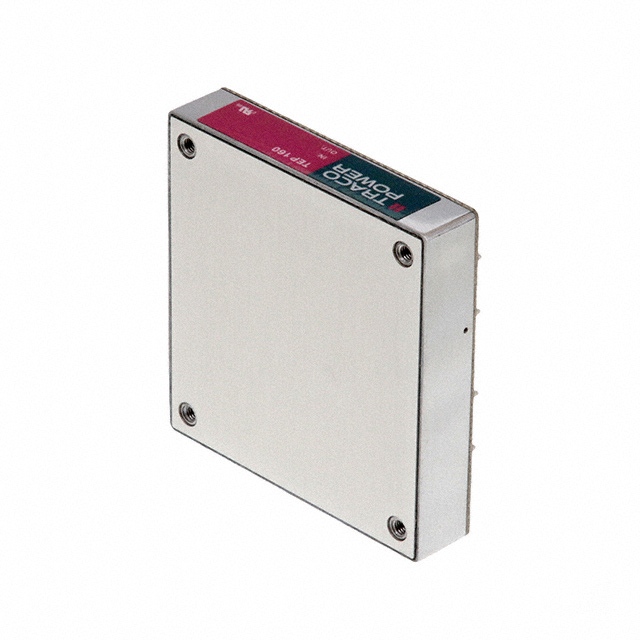

The TEP 160WIRCM Series from Traco Power offers isolated, high-performance DC/DC converter modules designed for demanding applications. This specific model, TEP 160-2418WIRCM, is an enclosed unit with a chassis mount type and screw terminal block for easy integration.
Key electrical specifications include an input voltage range of 9-36 VDC, a 48V output voltage, and a maximum output current of 3A, resulting in a power output of 144W. It boasts a typical efficiency of 90% and an isolation voltage of 2.25 kV. The operating temperature range is -40°C to 75°C with derating.
Designed for reliability, this converter is suitable for ITE (Commercial) and Railway applications, with EN 50155 approval mentioned for railway use. Its dimensions are 85.1mm in length, 61.0mm in width, and 33.8mm in height.
Additional features include adjustable output voltage (+10 / -20%), a sense line, remote On/Off input, and an under-voltage lock-out circuit. The unit comes with a 3-year product warranty.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 48 VDC.
The maximum output current is 3A.
The input voltage range is 9-36 VDC, 18-75 VDC, and 43-160 VDC.
The power rating is 144W.
The operating temperature range is -40°C to 75°C with derating.
It uses chassis mount with screw terminal block.
