| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

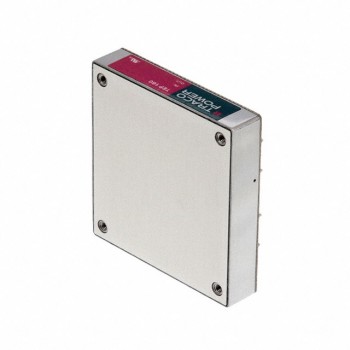

This Traco Power TEP 160-2412WIRCMF is an enclosed DC/DC converter delivering 144W of power with a 12V output voltage. It operates within a wide input voltage range of 9V to 36V.
The converter features a high efficiency of 90% and an isolation voltage of 2.25 kV. It is suitable for applications in ITE (Commercial) and Railway sectors.
Designed for robust integration, this unit is chassis mounted and has dimensions of 85.1mm x 61.0mm x 33.8mm. The operating temperature range is -40°C to 75°C with derating.
Compliance includes RoHS3, REACH Unaffected, and Moisture Sensitivity Level 1. Approval agencies are CB, CE, and cURus.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 12V.
The input voltage range is 9V to 36V.
The maximum output current is 12A.
The power rating is 144W.
The operating temperature range is -40°C to 75°C (With Derating).
It uses chassis mount.
The dimensions are 85.1mm x 61.0mm x 33.8mm.
