| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

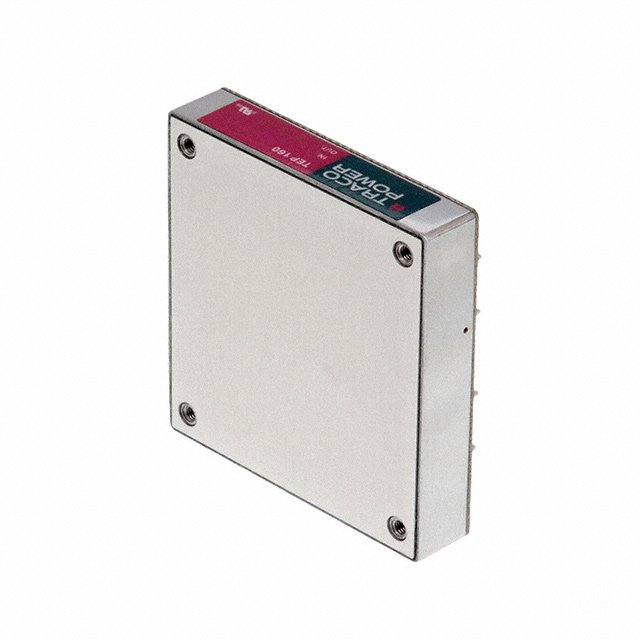

The TEP 160WIRCM Series from Traco Power offers high-performance, isolated DC/DC converter modules designed for demanding applications. This specific model, TEP 160-2411WIRCM, is an enclosed unit with a chassis mount and screw terminal block for easy integration.
It provides a 5V output at a maximum current of 28A, delivering 140W of power. The converter boasts an ultra-wide 4:1 input voltage range of 9-36 VDC, making it suitable for battery-operated systems and various industrial applications. With a high efficiency of up to 90%, it can operate at full power without forced air cooling at 25°C.
Key features include adjustable output voltage (+10 / -20%), a sense line, remote On/Off input, and an under-voltage lock-out circuit. The converter is approved for railway applications under EN 50155 and meets IEC/UL 62368-1 standards. Its operating temperature range is -40°C to 75°C with derating.
Typical applications include telecom/datacom, industrial control, and railway systems for on-board power distribution. The dimensions are 85.1mm x 61.0mm x 33.8mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TEP 160-2411WIRCM has a 5V output voltage and a maximum output current of 28A.
This converter accepts an ultra-wide input voltage range of 9-36 VDC, 18-75 VDC, or 43-160 VDC.
The power rating for this unit is 140W.
The operating temperature range is -40°C to 75°C, with derating.
The dimensions are 85.1mm in length, 61.0mm in width, and 33.8mm in height.
It has EN 50155 approval for railway applications, and meets IEC 62368-1 and UL 62368-1 standards. Approval agencies include CB, CE, and cURus.
