| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Width |

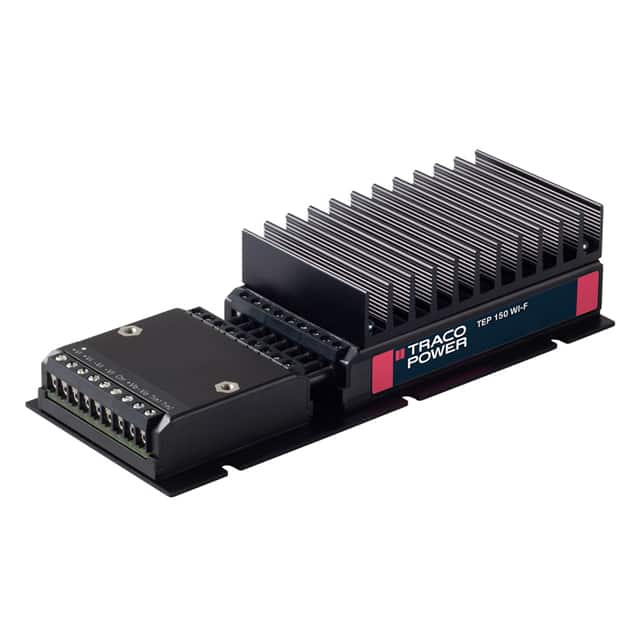

The TRACO Power TEP 150-7212WI-F is a 150 Watt DC/DC converter from the TEP 150WI series, designed for demanding environments. It features an ultra-wide 4:1 input voltage range of 43-160 VDC, making it suitable for nominal input voltages of 110 VDC with a wide tolerance.
This converter provides a 12 VDC output with a maximum current of 12.5A and a power rating of 150W. It boasts a high efficiency of up to 88% and offers 2250 VDC I/O isolation. The operating temperature range is -40°C to +75°C, ensuring reliable performance in harsh conditions.
Designed with a shielded metal case and screw terminals, this converter is suitable for chassis mounting. It meets EN 50155 approval for railway applications and includes features like under voltage lock-out and overtemperature protection. An optional input filter is available to meet EN 55032 class B standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 43 to 160 VDC.
The output voltage is 12 VDC with a maximum current of 12.5A.
The power rating is 150W.
The operating temperature range is -40°C to +75°C.
Yes, it has EN 50155 approval for railway applications.
