| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Current | |
| Input Ratio | |
| Input Voltage | |
| Length | |
| MTBF | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Output Voltage Adjustment Range | |
| Power (Watts) | |
| Surge Voltage | |
| Type | |
| Under Voltage Lockout | |
| Voltage | |
| Width |

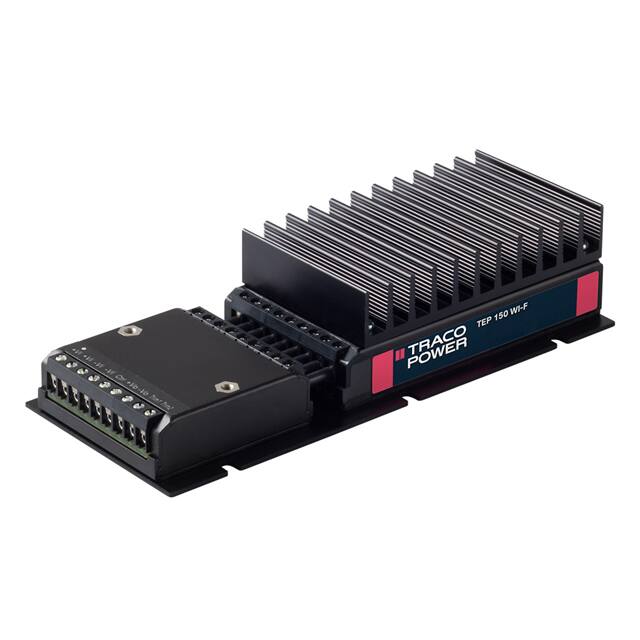

The Traco Power TEP 150-2418WI-F is a 150 Watt enclosed DC DC converter from the TEP 150WI Series. It features a wide 4:1 input voltage range, supporting 9-36 VDC, 18-75 VDC, and 43-160 VDC nominal inputs. This converter provides a regulated 48 VDC output with an adjustable range of 0 to 20% and a maximum output current of 3.2A, delivering up to 154W of power.
With a high efficiency of up to 86%, the TEP 150-2418WI-F operates across a wide temperature range of -40°C to +75°C. It includes essential protections such as under voltage lock-out and overtemperature protection. The converter is housed in a shielded metal case with screw terminals and is designed for chassis mounting, making it suitable for industrial environments.
This series is approved according to EN 50155 for railway applications and meets IEC 62368-1 and UL 62368-1 standards. It also offers a constant current output characteristic, making it suitable for battery charger applications. An optional input filter is available to meet EN 55032 class B requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 9-36V, 18-75V, or 43-160V DC.
The output voltages are 12V, 15V, 24V, 28V, and 48V DC.
The efficiency is 86%.
The maximum output current is 3.2A.
It operates from -40°C to 75°C.
The isolation voltage is 2.25kV.
It has a chassis mount, enclosed package.
