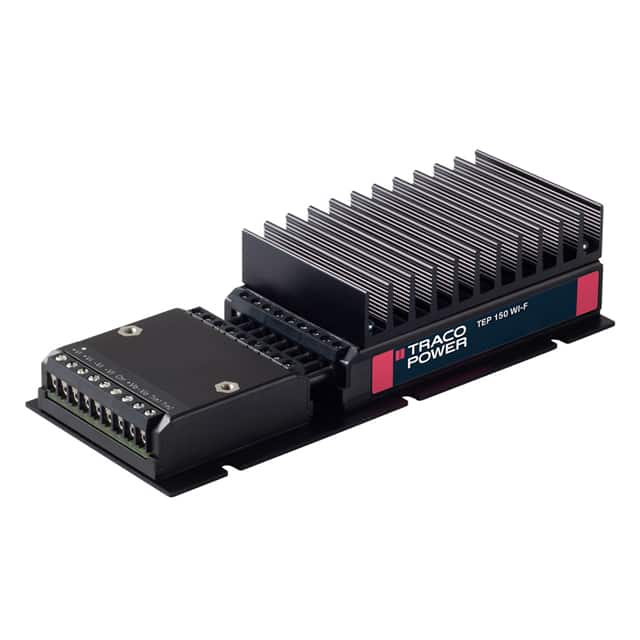

The TRACO Power TEP 150-2415WI-F is a 151 Watt enclosed DC DC converter designed for industrial and railway applications. It offers ultra-wide 4:1 input voltage ranges and operates from -40°C to +75°C.
Key electrical specifications include a 24V nominal input voltage, a 12 VDC adjustable output voltage, and a maximum output current of 6.3A. The converter boasts up to 87% efficiency and provides 2.25 kV isolation voltage. It is suitable for ITE (Commercial) and Railway applications.
This converter features chassis mount type and comes with various protection mechanisms. It is designed for harsh industrial environments with high EMC immunity and resistance to shock, vibration, and thermal shock. The constant current output characteristic makes it suitable for battery load applications.
Compliance includes CB, CE, and cURus approvals. The unit is RoHS3 Compliant, has an MSL of 1 Unlimited, and is REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 9-36 VDC, 18-75 VDC, and 43-160 VDC.
The output voltage is adjustable from 12 VDC to 48 VDC, with a maximum output current of 6.3A for the 24 VDC nominal input model.
The power rating is 151W.
The operating temperature range is -40°C to 75°C.
It uses chassis mount.
