| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

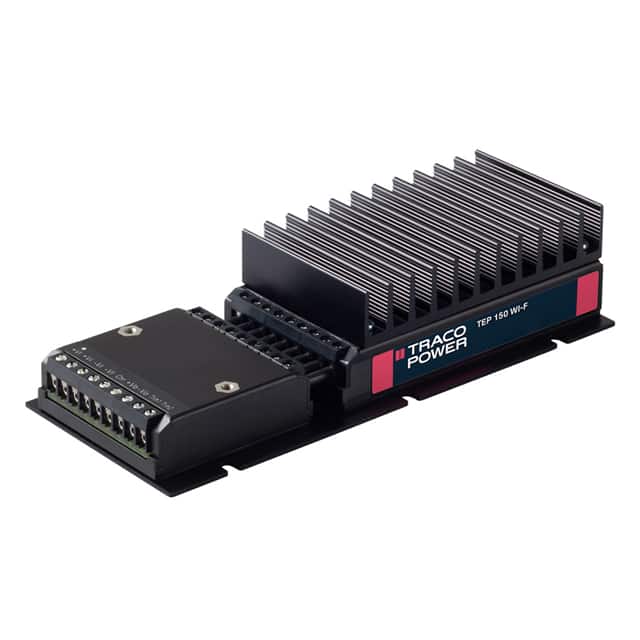

The TRACO Power TEP 150WI Series is a 150 Watt DC/DC converter designed for demanding applications. This specific model, TEP 150-2413WI-F, offers a 15V DC output with a maximum current of 10A, providing 150W of power.
It features an ultra-wide 4:1 input voltage range and a high efficiency of up to 86%. The converter is built with a shielded metal case and screw terminals, suitable for chassis mounting. Its operating temperature range is -40°C to +75°C, making it robust for industrial and railway environments.
Key features include constant current output characteristics for battery load applications and protection against over-temperature, overload, short-circuit, and input under-voltage. The series also boasts high EMC immunity and shock/vibration resistance, meeting EN 50155 approval for railway applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 15 VDC, adjustable between 15.0 VDC and 18.0 VDC.
The maximum output current is 10A.
The power rating is 150W.
The typical efficiency is 86%.
The operating temperature range is -40°C to 75°C.
The TEP 150WI series supports ultra-wide 4:1 input voltage ranges of 9–36 VDC, 18–75 VDC, and 43–160 VDC.
