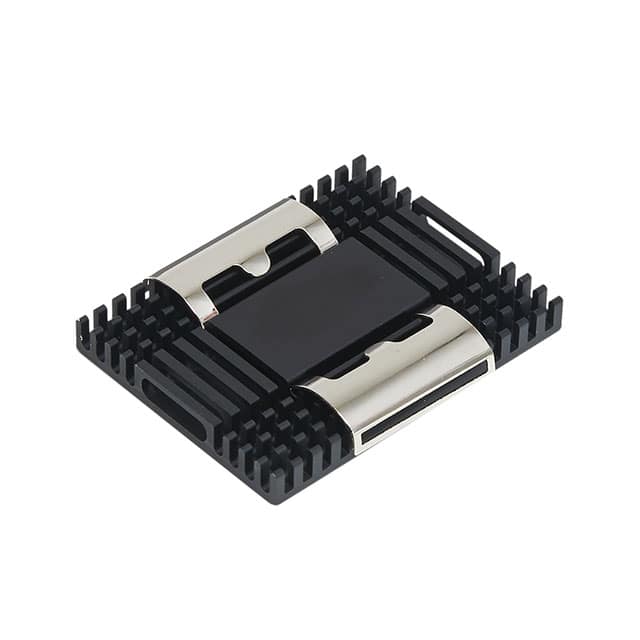

The Traco Power TEN-HS5 is an essential accessory for the TEN25 and TEN25WI series of DC/DC converters. This heat sink is designed to ensure optimal thermal management for these high-performance power modules.
The TEN 25WI series converters, for which this heat sink is intended, feature an ultra-wide 4:1 input voltage range, adjustable output voltage, and remote On/Off control. They also include continuous short circuit protection, over-voltage protection, and over-temperature protection. The internal EMI filter meets EN 55032 Class A and FCC Level A standards without external components.
This heat sink is crucial for applications requiring reliable operation under demanding thermal conditions, such as industrial electronics, communication systems, battery-operated equipment, and distributed power systems. Proper heat dissipation is vital for maintaining the performance and longevity of the power supply modules.
Designed with an industry-standard footprint, the TEN 25WI series converters are compact and low-profile. The TEN-HS5 heat sink complements these modules by providing effective heat dissipation, ensuring they operate within their specified temperature limits.
The TEN 25WI series power supplies feature an ultra-wide 4:1 input voltage range, with specific models supporting 10-40 VDC or 18-75 VDC.
Available output voltages for the TEN 25WI series include 3.3 VDC, 5 VDC, 12 VDC, 15 VDC, and ±12 VDC, ±15 VDC.
The maximum output current for the 12 VDC output models in the TEN 25WI series is 2.5 A.
The typical efficiency for the TEN 25WI series converters is up to 89%.
The TEN 25WI series includes continuous short circuit protection, over voltage protection, and over temperature protection.
The I/O isolation voltage for the TEN 25WI series is 1500 VDC.
Yes, the TEN 25WI series features an internal EMI filter that meets EN 55032, class A and FCC, level A without external components.
