| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Size / Dimension | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Input (Max) | |
| Voltage - Isolation | |
| Voltage - Output 1 | |
| Width |

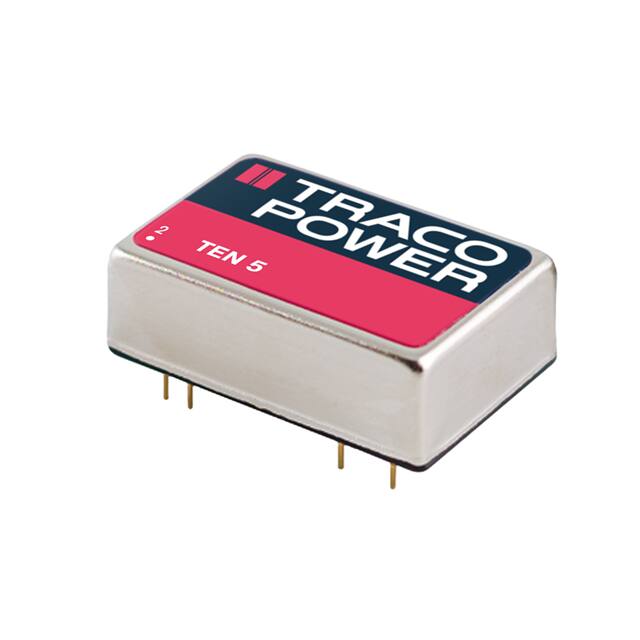

The Traco Power TEN 5-4811 is an isolated DC-DC converter module from the TEN 5 series. It accepts a wide 2:1 input voltage range of 36 to 75 VDC (48 VDC nominal) and provides a regulated single output of 5 VDC at up to 1 A, delivering 5 watts of output power. The converter features 1500 VDC input-to-output isolation and typical efficiency of 83%.
Designed for commercial ITE (Information Technology Equipment) applications, the TEN 5-4811 includes short circuit protection (SCP) and operates over an extended temperature range of -40°C to +85°C with derating. The module is housed in a shielded metal case with an insulated baseplate and uses a standard 24-pin DIP footprint with 7 leads.
The through-hole mounting package measures 31.8mm x 20.3mm x 10.2mm. The integrated input filter meets EN 55022 Class A and FCC Level A conducted noise limits without external components, simplifying system design.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.57 | $26.57 |
| 10+ | $26.17 | $26.17 |
| 20+ | $25.76 | $25.76 |
| 50+ | $24.54 | $24.54 |
| 100+ | $22.49 | $22.49 |
| 200+ | $22.08 | $22.08 |
| 500+ | $20.25 | $20.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 36 V to 75 VDC with a nominal of 48 VDC.
It provides a single output of 5 VDC at up to 1 A, with a total output power of 5 W.
The input-to-output isolation is 1500 VDC.
The operating temperature range is -40°C to +85°C with derating.
It is a through-hole 24-DIP module with 7 leads, measuring 31.8mm x 20.3mm x 10.2mm.
The RoHS status is listed as RoHS3 Compliant, but this is unverified.
